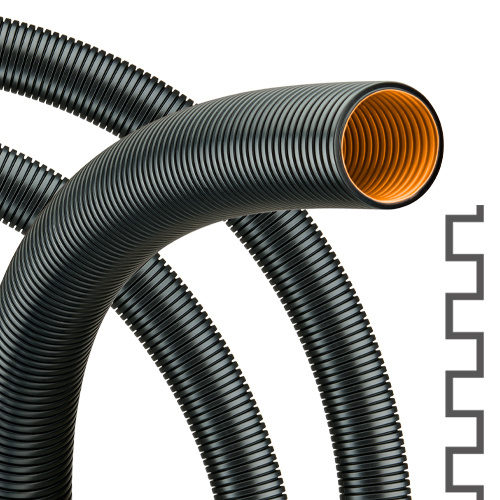

Flexa ROHRflex PA 12F+ (Multilayer) - corrugated tubing
- Flexa ROHRflex PA 12F+ (Multilayer) corrugated plastic tubing especially for outdoor applications. Available in black with fine or coarse profile.
Flexa ROHRflex PA 12F+ (Multilayer)
The Flexa ROHRflex PA 12+ (Multilayer) protective pipe is made of plastic. Available in black, with a fine or coarse profile.
FLEXA Multilayer
Tubing features:
- high alternate bending strength under extreme climatic conditions
- oil and benzine resistant
- widely resistant to acid and solvents
- free of silicone, cadmium, halogen
- highly self-extinguishing
- flame retardant
- excellent UV-resistance
- REACH and RoHS compliant
Applications:
- Automation
- Railway
- Automotive
| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 11249202006 | Black | 10,0 | fine | 6,6 | 10,0 | 13 | 35 | 0,020 | 50 |
| 11249202010 | Black | 13,0 | fine | 9,9 | 13,0 | 15 | 45 | 0,025 | 50 |
| 11249202012 | Black | 15,8 | fine | 12,3 | 15,9 | 25 | 55 | 0,040 | 50 |
| 11249202016 | Black | 21,2 | fine | 16,7 | 21,5 | 35 | 75 | 0,070 | 50 |
| 11249232023 | Black | 28,5 | coarse | 21,6 | 28,7 | 55 | 100 | 0,105 | 50 |
| 11249232029 | Black | 34,5 | coarse | 27,7 | 34,7 | 65 | 120 | 0,125 | 25 |
| 11249232036 | Black | 42,5 | coarse | 35,7 | 42,5 | 90 | 150 | 0,150 | 25 |
| 11249232048 | Black | 54,5 | 46,7 | 54,5 | 100 | 0,250 | 25 |
To download
Producer
Product code
ROHRflex PA 12F+
Series
Material
Polyamide - PA12
Temperature range
-50...+120°C
Tubing inner diameter (mm)
6,6 x 10,0 mm
, 9,9 x 13,0 mm
, 12,3 x 15,9 mm
, 16,7 x 21,2 mm
, 21,6 x 28,7 mm
, 27,7 x 34,7 mm
, 35,7 x 42,5 mm
, 46,7 x 54,5 mm
Tubing outer diameter (mm)
10 mm
, 13 mm
, 15.8 mm
, 21.2 mm
, 28,5 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Regular
Flame resistance
Regular
Insulating value
Increased
UV resistance
Increased
Resistance to impact
Regular
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Regular
Flexibility
Increased
Profile
Fine
, Coarse
Colour
Black
Compatible with
PA 12F+
, PA 12+
Certificate
EN 45545-2 [HL 3]
