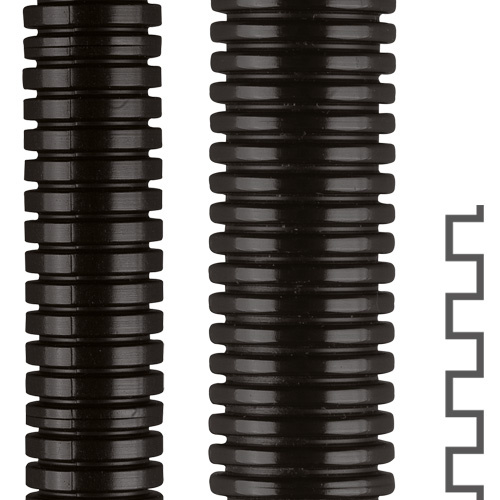

Flexa ROHRflex PA 12 - protective conduit
- ROHRflex PA 12 Flexa's protective all-plastic tubing. Available in black with a fine or coarse profile.
Flexa ROHRflex PA 12
Protective all-plastic tubing from ROHRflex PA 12 series developed by Flexa. Tubing available in black with a fine or coarse profile.
Tubing features:
- high alternate bending strength
- air- and liquid-tight
- oil and benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- excellent UV-resistance [black]
Applications:
- Automation
- Plant construction
- Railway
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment
| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10236202006 | Black | 10,0 | fine | 6,5 | 10,0 | 13 | 35 | 0,020 | 50 |
| 10236202010 | Black | 13,0 | fine | 10,0 | 13,0 | 15 | 45 | 0,030 | 50 |
| 10236202012 | Black | 15,8 | fine | 12,5 | 15,8 | 22 | 55 | 0,040 | 50 |
| 10236202014 | Black | 18,5 | fine | 14,3 | 18,2 | 27 | 65 | 0,050 | 50 |
| 10236202016 | Black | 21,2 | fine | 16,0 | 21,2 | 35 | 75 | 0,060 | 50 |
| 10236202023 | Black | 28,5 | fine | 23,0 | 28,5 | 45 | 100 | 0,100 | 50 |
| 10236202029 | Black | 34,5 | fine | 29,0 | 34,5 | 65 | 120 | 0,120 | 25 |
| 10236202036 | Black | 42,5 | fine | 36,0 | 42,5 | 80 | 150 | 0,150 | 25 |
| 10236202048 | Black | 54,5 | fine | 48,0 | 54,5 | 100 | 190 | 0,210 | 25 |
| 10236232016 | Black | 21,2 | coarse | 15,5 | 21,2 | 45 | 75 | 0,060 | 50 |
| 10236232023 | Black | 28,5 | coarse | 22,0 | 28,5 | 55 | 100 | 0,100 | 50 |
| 10236232029 | Black | 34,5 | coarse | 28,0 | 34,5 | 65 | 120 | 0,120 | 25 |
| 10236232036 | Black | 42,5 | coarse | 38,5 | 42,2 | 80 | 150 | 0,180 | 25 |
| 10236232048 | Black | 54,5 | coarse | 47,5 | 54,5 | 100 | 190 | 0,210 | 25 |
To download
Producer
Product code
ROHRflex PA 12
Series
Material
Polyamide - PA12
Temperature range
-50...+100°C
Tubing inner diameter (mm)
6.5 x 10.0 mm
, 10.0 x 13.0 mm
, 12.5 x 15.8 mm
, 14.3 x 18.2 mm
, 16.5 x 21.2 mm
, 23.0 x 28.5 mm
, 29.0 x 34.5 mm
, 36.0 x 42.5 mm
, 48.0 x 54.5 mm
, 15.5 x 21.2 mm
, 22.0 x 28.5 mm
, 28.0 x 34.5 mm
, 35.8 x 42.2 mm
, 47.5 x 54.5 mm
Tubing outer diameter (mm)
10 mm
, 13 mm
, 15.8 mm
, 18.5
, 21.2 mm
, 28,5 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Decreased
Flame resistance
Regular
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Decreased
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Decreased
Flexibility
Increased
Profile
Fine
, Coarse
Colour
Black
Compatible with
PA12
Certificate
EN / IEC 61386-23
, EN 45545-2 [HL 2] [eng] (56)
, UNI CEI 11170
