Flexa ROHRflex PA 12-F - corrugated tubing
- ROHRflex PA 12-F Flexa's protective all-plastic tubing. Available in black with fine or coarse profile.
Easy return of products within 14 days from the date of purchase without giving reasons
Flexa ROHRflex PA 12-F

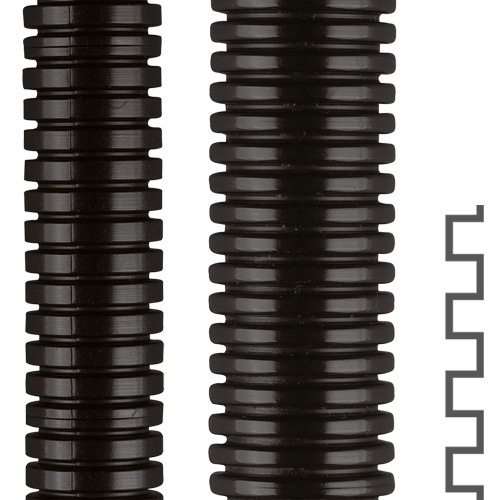

Protective all-plastic tubing ROHRflex PA 12-F series developed by Flexa. Available in black with fine or coarse profile.
Tubing features:
- very good fire protection
- for the railway industry
To download
Producer
Series
Material
Polyamide - PA12-F
Temperature range
-50...+100°C
Ingress Protection
IP66
, IP69K
Tubing inner diameter (mm)
6.5 x 10.0 mm
, 10.0 x 13.0 mm
, 12.0 x 15.8 mm
, 16.5 x 21.2 mm
, 15.5 x 21.2 mm
, 22.0 x 28.5 mm
, 27.5 x 34.5 mm
, 36.0 x 42.5 mm
, 47.0 x 54.5 mm
Tubing outer diameter (mm)
10 mm
, 13 mm
, 15.8 mm
, 21.2 mm
, 28,5 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
Resistance to compression
Decreased
Flame resistance
Increased
Insulating value
Increased
UV resistance
Increased
Resistance to impact
Decreased
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Decreased
Flexibility
Increased
Profile
Fine
, Coarse
Colour
Black
Compatible with
PA12-F
Certificate
EN / IEC 61386-23
, EN 45545-2 [HL 3]
