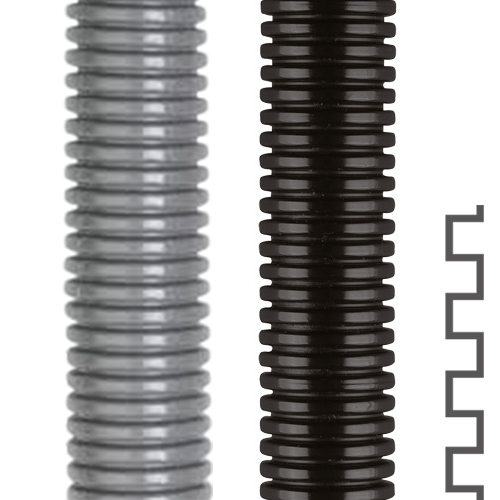

Flexa ROHRflex MULTI PA 6 - protective conduit
- ROHRflex MULTI PA 6 Flexa's protective all-plastic tubing for large quantity of cables. Available in black and gray.
Flexa ROHRflex MULTI PA 6
Protective all-plastic tubing from ROHRflex MULTI PA 6 series developed by Flexa. Tubing is available in black and gray colour. Fine profile, internally and externally corrugated.
Tubing features:
- non-crush
- air- and liquid-tight
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
- oil and benzine resistant
- widely resistant to acids and solvents
- especially suitable for applications with frequently reversed bending cycles
- HB acc. to UL 94
Applications
- Automation
- Plant construction
- Railway
- Shipbuilding
- Electrical installations
- Automotive
- Machinery and equipment
| FLEXA No. | Colour | NW [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10206202056 | Black | 56,0 | fine | 56,3 | 67,2 | 130 | 270 | 0,460 | 10 |
| 10206202070 | Black | 70,0 | fine | 66,5 | 79,2 | 170 | 350 | 0,500 | 10 |
| 10206202095 | Black | 95,0 | fine | 91,0 | 106,0 | 225 | 450 | 0,950 | 10 |
| 10206201070 | Grey | 70,0 | fine | 66,5 | 79,2 | 170 | 350 | 0,500 | 10 |
| 10206201095 | Grey | 95,0 | fine | 91,0 | 106,0 | 225 | 450 | 0,950 | 10 |
To download
Producer
Product code
ROHRflex MULTI PA 6
Series
Material
Polyamide - PA6
Temperature range
-40...+120°C
Tubing inner diameter (mm)
56.3 x 67.2 mm
, 66.5 x 79.2 mm
, 91.0 x 106.0 mm
Tubing outer diameter (mm)
67.2 mm
, 79.2 mm
, 106 mm
Resistance to compression
Increased
Flame resistance
Regular
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Increased
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Regular
Flexibility
Regular
Profile
Fine
Colour
Black
, Grey
Compatible with
Multi PA6
Certificate
UL 1696 | CSA 22.2, UR file E86359
