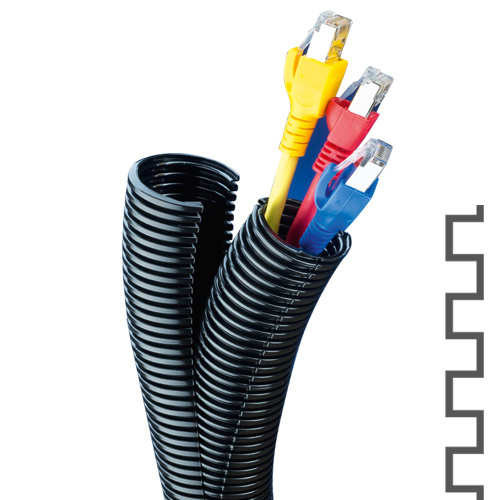

Flexa ROHRflex-Duo PA 6 - protective conduit
- ROHRflex-Duo PA 6 is Flexa's two-pieces, longitudinal dividable all-plastic tubing, available in black, fine-profiled.
Flexa ROHRflex-Duo PA 6
Protective all-plastic tubing from ROHRflex-Duo PA 6 series developed by Flexa. Tubing is available in black colour and has fine profile. Operating temperature range: -40°C ... +120°C.
Tubing features:
- good chemical resistance
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- flexible bending strength
- UV-resistant
Application
- Plant construction
- Electrical installations
- For retrofit and repair
- Automotive
- Machinery and equipment
- Switch cabinet construction
| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10269202006 | Black | 10,0 | fine | 5,6 | 10,3 | 30 | 90 | 0,030 | 50 |
| 10269202008 | Black | 13,0 | fine | 8,5 | 13,3 | 35 | 110 | 0,040 | 50 |
| 10269202010 | Black | 15,8 | fine | 11,0 | 16,0 | 40 | 120 | 0,060 | 50 |
| 10269202014 | Black | 21,2 | fine | 15,1 | 21,3 | 55 | 170 | 0,070 | 50 |
| 10269202019 | Black | 25,6 | fine | 19,1 | 25,6 | 75 | 230 | 0,100 | 50 |
| 10269202020 | Black | 28,5 | fine | 21,9 | 28,5 | 95 | 290 | 0,110 | 50 |
| 10269202024 | Black | 31,7 | fine | 24,0 | 31,7 | 110 | 330 | 0,130 | 50 |
| 10269202026 | Black | 34,5 | fine | 27,2 | 35,0 | 120 | 360 | 0,160 | 25 |
| 10269202032 | Black | 42,5 | fine | 32,0 | 42,5 | 135 | 410 | 0,200 | 25 |
| 10269202043 | Black | 54,5 | fine | 43,9 | 53,9 | 140 | 420 | 0,270 | 25 |
| 10269202061 | Black | 79,0 | fine | 62,2 | 79,0 | 200 | 600 | 0,540 | 10 |
| 10269202106 | Black | 10,0 | fine | 5,6 | 10,3 | 30 | 90 | 0,030 | 10 |
| 10269202108 | Black | 13,0 | fine | 8,5 | 13,3 | 35 | 110 | 0,040 | 10 |
| 10269202110 | Black | 15,8 | fine | 11,0 | 16,0 | 40 | 120 | 0,060 | 10 |
| 10269202114 | Black | 21,2 | fine | 15,1 | 21,3 | 55 | 170 | 0,070 | 10 |
| 10269202120 | Black | 28,5 | fine | 21,9 | 28,5 | 95 | 290 | 0,110 | 10 |
| 10269202126 | Black | 34,5 | fine | 27,2 | 35,0 | 120 | 360 | 0,160 | 5 |
| 10269202132 | Black | 42,5 | fine | 32,0 | 42,5 | 135 | 410 | 0,200 | 5 |
| 10269202143 | Black | 54,5 | fine | 43,9 | 53,9 | 140 | 420 | 0,270 | 5 |
| 10269202161 | Black | 79,0 | fine | 62,2 | 79,0 | 200 | 600 | 0,540 | 5 |
To download
Producer
Product code
ROHRflex-Duo PA 6
Series
Material
Polyamide - PA6
Temperature range
-40...+120°C
Tubing inner diameter (mm)
5.6 x 10.3 mm
, 8.5 x 13.3 mm
, 11.0 x 16.0 mm
, 15.1 x 21.3 mm
, 19.1 x 25.6 mm
, 21.9 x 28.5 mm
, 24.0 x 31.7 mm
, 27.2 x 35.0 mm
, 32.0 x 42.5 mm
, 43.9 x 53.9 mm
, 62.2 x 79.0 mm
Tubing outer diameter (mm)
10 mm
, 13 mm
, 15.8 mm
, 21.2 mm
, 25.6 mm
, 28,5 mm
, 31.7 mm
, 34.5 mm
, 42.5 mm
, 54.5 mm
, 79 mm
Resistance to compression
Decreased
Flame resistance
Regular
Insulating value
Regular
UV resistance
Increased
Resistance to impact
Regular
Operation in smoke
Permissible
Pertol resistance
Increased
Oil resistance
Regular
Tensile strength
Decreased
Flexibility
Regular
Application features
Dividable
Profile
Fine
Colour
Black
Compatible with
Duo PA6
