Flexa RGE - connector for corrugated tubings
- RGE is a Flexa brand connector designed for conduits. The product is made of nickel-plated brass and is of the safety type.
Flexa RGE

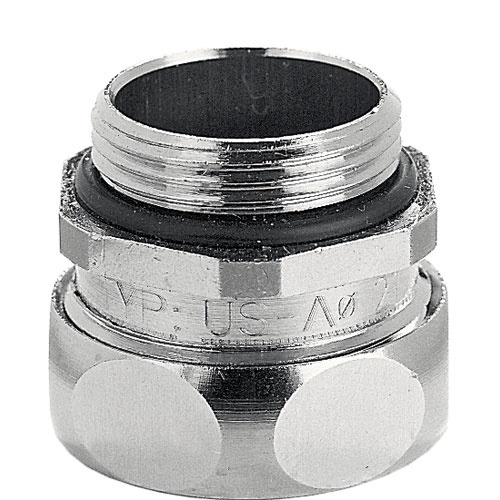

The Flexa RGE protective pipe connector is an easy-to-install solution made of nickel-plated brass, designed for ROHRflex systems. The product provides IP66 protection and is suitable for use in temperatures ranging from -40°C to +120°C. The set includes a special seal, a brass thrust ring, and an O-ring seal for EMC applications.
Connector features
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- covered conduit ends
- optimal shielding with high-density
Applications
- machine and plant constructions
- automotive
- automation
- electrical installations
- EMC applications
RGE – IP66, nickel-plated brass, EMC applications, metric thread, temperature range -40...+120°C
| FLEXA No. | OD [mm] |
Thread type | Conduit ID | Conduit OD | Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS1 [mm] |
WS2 [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15126013012 | 13,0 | M12 x 1,5 | 10,0 | 14,0 | 9,0 | 28,0 | 10,0 | 23,0 | 19 | 21 | 2,100 | 10 |
| 15126015016 | 15,8 | M16 x 1,5 | 12,0 | 17,0 | 13,0 | 29,0 | 10,0 | 27,0 | 23 | 25 | 3,300 | 10 |
| 15126021020 | 21,2 | M20 x 1,5 | 16,0 | 23,0 | 16,5 | 31,0 | 10,0 | 31,0 | 27 | 29 | 3,900 | 10 |
| 15126034032 | 34,5 | M32 x 1,5 | 27,5 | 36,0 | 27,5 | 40,0 | 13,0 | 48,0 | 43 | 45 | 11,000 | 10 |
| 15126042040 | 42,5 | M40 x 1,5 | 35,5 | 44,0 | 35,5 | 40,0 | 13,0 | 57,0 | 52 | 54 | 14,900 | 10 |
| 15126054050 | 54,5 | M50 x 1,5 | 47,0 | 56,0 | 44,5 | 47,0 | 14,0 | 70,0 | 52 | 66 | 21,500 | 10 |
To download
Producer
Product code
RGE
Series
Thread
M12
, M16
, M20
, M32
, M40
, M50
Material
Nickel-plated Brass
Ingress Protection
IP66
Tubing outer diameter (mm)
13
, 15,8
, 21,2
, 34,5
, 42,5
, 54,5
Product width in millimeters
28
, 29
, 31
, 40
, 47
Product height in millimetres
23
, 27
, 31
, 48
, 57
, 70
Temperature range
-40...+120°C
Colour
Unpainted
