Flexa PH12 - guide chain
- Plastic guide chains, highly stressable, economical, easy to mount. Compatible connections, simple handling with standard tools. Ha - Outer height 108 mm, Hi - Inner height 80 mm, T-Pitch 125 mm
Flexa PH12

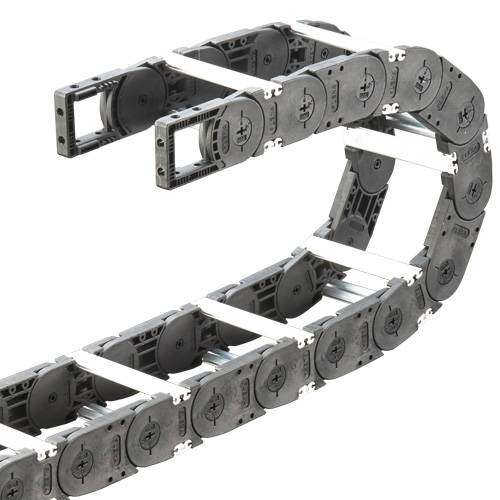

PH12 cable track developed by Flexa has an 108 mm outer height (Ha), 80 mm inner height (Hi) and 125 mm T-Pitch.
The outer width of the chain is available in variants ranging from 142 to 392 mm, the inner width from 100 to 350 mm. The bend radius of the product can range from 150 to 500 mm and the curve length from 600 to 2000 mm.
The guide chain is designed for extended lifetime and it is easy to mount. Product is made of plastic and aluminum (bar frames). It is used in automation.
PH12 guide chain features:
- Properties: easy to mount
- economical
- designed for extended lifetime
- inner and outer widths up to approx. 600 mm available
- compatible connections
- simple handling with standard tools
Applications:
- Automation
| FLEXA No. | Article | Bi [mm] |
R [mm] |
Ba [mm] |
Bow length [mm] |
Max. quant. [separators] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 16096100015 | PH12-100A-15F | 100,0 | 150 | 142,0 | 600 | 5 | 4,880 | 1 |
| 16096100020 | PH12-100A-20F | 100,0 | 200 | 142,0 | 800 | 5 | 4,880 | 1 |
| 16096100025 | PH12-100A-25F | 100,0 | 250 | 142,0 | 1000 | 5 | 4,880 | 1 |
| 16096100030 | PH12-100A-30F | 100,0 | 300 | 142,0 | 1200 | 5 | 4,880 | 1 |
| 16096100050 | PH12-100A-50F | 100,0 | 500 | 142,0 | 2000 | 5 | 4,880 | 1 |
| 16096150015 | PH12-150A-15F | 150,0 | 150 | 192,0 | 600 | 8 | 5,110 | 1 |
| 16096150020 | PH12-150A-20F | 150,0 | 200 | 192,0 | 800 | 8 | 5,110 | 1 |
| 16096150025 | PH12-150A-25F | 150,0 | 250 | 192,0 | 1000 | 8 | 5,110 | 1 |
| 16096150030 | PH12-150A-30F | 150,0 | 300 | 192,0 | 1200 | 8 | 5,110 | 1 |
| 16096150050 | PH12-150A-50F | 150,0 | 500 | 192,0 | 2000 | 8 | 5,110 | 1 |
| 16096200015 | PH12-200A-15F | 200,0 | 150 | 242,0 | 600 | 11 | 5,330 | 1 |
| 16096200020 | PH12-200A-20F | 200,0 | 200 | 242,0 | 800 | 11 | 5,330 | 1 |
| 16096200025 | PH12-200A-25F | 200,0 | 250 | 242,0 | 1000 | 11 | 5,330 | 1 |
| 16096200030 | PH12-200A-30F | 200,0 | 300 | 242,0 | 1200 | 11 | 5,330 | 1 |
| 16096200050 | PH12-200A-50F | 200,0 | 500 | 242,0 | 2000 | 11 | 5,330 | 1 |
| 16096250015 | PH12-250A-15F | 250,0 | 150 | 292,0 | 600 | 13 | 5,560 | 1 |
| 16096250020 | PH12-250A-20F | 250,0 | 200 | 292,0 | 800 | 13 | 5,560 | 1 |
| 16096250025 | PH12-250A-25F | 250,0 | 250 | 292,0 | 1000 | 13 | 5,560 | 1 |
| 16096250030 | PH12-250A-30F | 250,0 | 300 | 292,0 | 1200 | 13 | 5,560 | 1 |
| 16096250050 | PH12-250A-50F | 250,0 | 500 | 292,0 | 2000 | 13 | 5,560 | 1 |
| 16096300015 | PH12-300A-15F | 300,0 | 150 | 342,0 | 600 | 16 | 5,780 | 1 |
| 16096300020 | PH12-300A-20F | 300,0 | 200 | 342,0 | 800 | 16 | 5,780 | 1 |
| 16096300025 | PH12-300A-25F | 300,0 | 250 | 342,0 | 1000 | 16 | 5,780 | 1 |
| 16096300030 | PH12-300A-30F | 300,0 | 300 | 342,0 | 1200 | 16 | 5,780 | 1 |
| 16096300050 | PH12-300A-50F | 300,0 | 500 | 342,0 | 2000 | 16 | 5,780 | 1 |
| 16096350015 | PH12-350A-15F | 350,0 | 150 | 392,0 | 600 | 19 | 6,000 | 1 |
| 16096350020 | PH12-350A-20F | 350,0 | 200 | 392,0 | 800 | 19 | 6,000 | 1 |
| 16096350025 | PH12-350A-25F | 350,0 | 250 | 392,0 | 1000 | 19 | 6,000 | 1 |
| 16096350030 | PH12-350A-30F | 350,0 | 300 | 392,0 | 1200 | 19 | 6,000 | 1 |
| 16096350050 | PH12-350A-50F | 350,0 | 500 | 392,0 | 2000 | 19 | 6,000 | 1 |
To download
Producer
Product code
PH12
Series
Inner height in millimeters
80
Product height in millimetres
108
Inner width in millimeters
100
, 150
, 200
, 250
, 300
, 350
Product width in millimeters
142
, 192
, 242
, 292
, 342
, 392
Bow length in millimeters
600
, 800
, 1000
, 1200
, 2000
Radius in millimeters
150
, 200
, 250
, 300
, 500
Load capacity (kg/m)
4,88
, 5,11
, 5,33
, 5,56
, 5,78
, 6
Material
Polyamide
, Aluminum
Temperature range
-40...+135°C
