Flexa NIMS-M - metal connector for corrugated tubings
- NIMS-M is a nickel-plated brass metal connector with a metric external thread. It has a metal clamping olive and a hexagonal wrench surface. An O-ring is included in the set.
Flexa NIMS-M

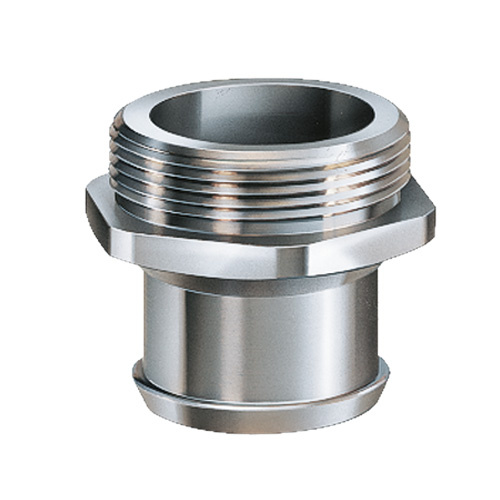

Flexa NIMS-M is a metal connector with an external metric thread, made of nickel-plated brass. It features a metal conduit olive and a hexagon wrench surface. An O-ring is included. It is designed for protective conduits such as K-EDU / K-Schlauch / HG-CU / HG-CU-K / HG-EDU / FLEXA Hightemp. It provides water and dust resistance with an IP protection rating from IP40 to IP65 (according to EN 60529). It operates in a temperature range from -40°C to +250°C.
Connector features:
- water and dust resistance
- clamping lock for conduit and threaded connector
- proper grounding
- conduit end covers
- resistance to vibration and stress
Applications:
- machine and equipment construction
- electrical installations
| FLEXA No. | OD [mm] |
Thread type |
Ø I [mm] |
Ø C [mm] |
Ø D [mm] |
E [mm] |
F [mm] |
WS [mm] |
Weight [kg/m] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15010023012 | 14.0 | M12 x 1.5 | 7.0 | 9.0 | 15.5 | 6.4 | 29.0 | 14 | 1.380 | 10 |
| 15010023016 | 17.0 | M16 x 1.5 | 10.0 | 12.0 | 19.0 | 6.5 | 29.0 | 17 | 2.300 | 10 |
| 15010023020 | 19.0 | M20 x 1.5 | 12.0 | 14.0 | 24.3 | 6.5 | 29.0 | 22 | 3.400 | 10 |
| 15010023025 | 21.0 | M25 x 1.5 | 14.0 | 16.0 | 30.1 | 6.5 | 29.0 | 27 | 4.400 | 10 |
| 15010023032 | 27.0 | M32 x 1.5 | 19.0 | 21.0 | 39.1 | 6.5 | 32.1 | 35 | 8.600 | 5 |
| 15010023040 | 36.0 | M40 x 1.5 | 27.0 | 29.0 | 51.0 | 7.5 | 39.0 | 43 | 10.800 | 5 |
| 15010023050 | 45.0 | M50 x 1.5 | 35.0 | 37.1 | 59.5 | 10.0 | 47.0 | 54 | 15.000 | 5 |
| 15010023063 | 56.0 | M63 x 1.5 | 46.0 | 54.0 | 70.0 | 10.0 | 50.1 | 65 | 33.000 | 5 |
To download
Producer
Product code
NIMS-M
Series
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
Material
Nickel-plated Brass
Ingress Protection
IP40
, IP65
Tubing outer diameter (mm)
14 mm
, 17 mm
, 19 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Product width in millimeters
15.5
, 19
, 24,3
, 30,1
, 39,1
, 51
, 59,5
, 70
Product height in millimetres
29
, 32,1
, 39
, 47
, 50,1
Temperature range
-40...+250°C
Colour
Unpainted
