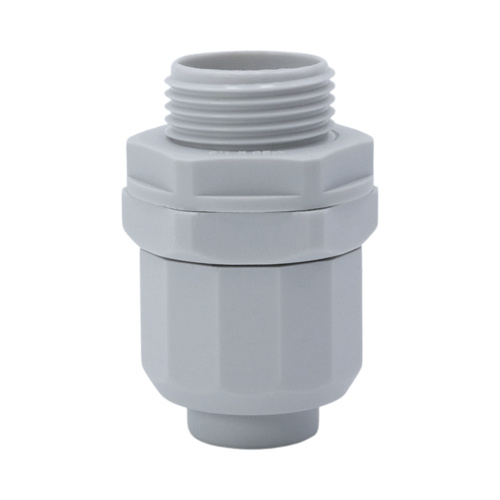

Flexa LKS-M - connector for corrugated tubings
- LKS-M is a Flexa brand connector designed for conduits. The product is made of polypropylene (PP). It is a one-piece, rotatable connector with a counternut.
Flexa LKS-M
LKS-M is a Flexa brand connector designed for conduits. The product is made of polypropylene (PP) and has an operating temperature range of -10°C to +110°C. It provides IP61 tightness. It is a one-piece, rotatable connector with a lock nut. The connector is designed for AIRflex conduits.
Connector features
- rational conduit fitting
- one-part connector body
- conduit screw-out-locking
- covering of the conduit ends
- vibrationproof and tensionproof
Applications
- machine and plant constructions
- automation
- electrical installations
LKS-M - IP61, one-piece, rotatable connector with a counternut, metric thread
| FLEXA No. | OD [mm] |
Colour | Thread type | Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15020114016 | 17,0 | Grey | M16 x 1,5 | 10,0 | 24,0 | 15,0 | 41,0 | 22 | 0,785 | 20 |
| 15020114020 | 21,0 | Grey | M20 x 1,5 | 13,0 | 30,0 | 15,0 | 44,6 | 27 | 1,250 | 20 |
| 15020114025 | 25,0 | Grey | M25 x 1,5 | 17,5 | 35,0 | 15,0 | 44,4 | 32 | 1,600 | 20 |
| 15020114032 | 31,0 | Grey | M32 x 1,5 | 23,5 | 45,8 | 15,0 | 48,6 | 38 | 2,500 | 10 |
| 15020114040 | 38,0 | Grey | M40 x 1,5 | 30,0 | 55,5 | 18,0 | 54,7 | 46 | 3,570 | 10 |
| 15020114050 | 47,0 | Grey | M50 x 1,5 | 38,0 | 65,8 | 18,0 | 57,0 | 55 | 5,280 | 5 |
| 15020114063 | 57,0 | Grey | M63 x 1,5 | 48,0 | 81,0 | 19,0 | 79,5 | 70 | 14,860 | 5 |
To download
Producer
Product code
LKS-M
Series
Thread
M16
, M20
, M25
, M32
, M40
, M50
, M63
Compatible with
AIRflex-KS
Material
Polypropylene - PP
Ingress Protection
IP61
Tubing outer diameter (mm)
17
, 21
, 25
, 31
, 38
, 47
, 57
Product width in millimeters
24
, 30
, 35
, 45,8
, 55,5
, 65,8
, 81
Product height in millimetres
41
, 44,6
, 54,7
, 57
, 79.5
Temperature range
-10...+110°C
Colour
Grey
