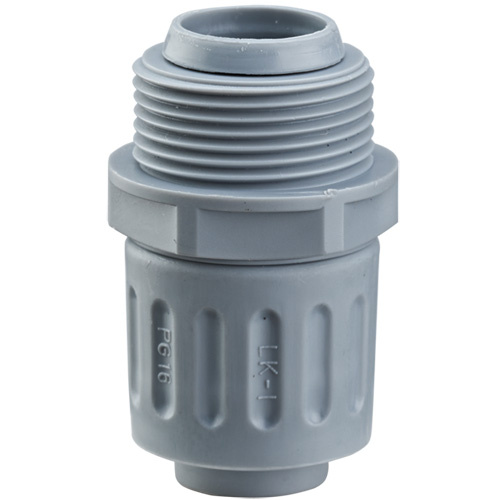

Flexa LKI - connector for corrugated tubings
- LKI is a Flexa brand connector designed for conduits. The product is made of polyamide (PA) and equipped with a quick connector (FLEXAquick technology).
Flexa RQG
LKI is a Flexa brand connector designed for conduits. The product is made of plastic and has an operating temperature range of -10°C to +110°C. It provides IP54 tightness. The connector is one-piece and rotatable, with an external thread. The connector, based on FLEXAquick quick connection technology, is designed for AIRflex conduits.
Connector features
- rational conduit fitting
- one-part connector body
- conduit screw-out-locking
- covering of the conduit ends
- vibrationproof and tensionproof
Applications
- machine and plant constructions
- automation
- electrical installations
LKI-M - IP54, metric thread, designed for AIRflex conduitsx
| FLEXA No. | OD [mm] |
Colour | Thread type |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15020014212 | 10,0 | Black | M12 x 1,5 | 5,5 | 17,5 | 10,0 | 38,0 | 16 | 0,260 | 50 |
| 15020014216 | 14,0 | Black | M16 x 1,5 | 9,5 | 21,0 | 10,0 | 39,5 | 19 | 0,380 | 50 |
| 15020014220 | 17,0 | Black | M20 x 1,5 | 11,5 | 24,5 | 10,0 | 42,0 | 22 | 0,640 | 50 |
| 15020014225 | 21,0 | Black | M25 x 1,5 | 14,5 | 30,0 | 11,0 | 48,0 | 27 | 0,980 | 50 |
| 15020014232 | 27,0 | Black | M32 x 1,5 | 19,5 | 39,0 | 12,0 | 58,0 | 35 | 1,680 | 25 |
| 15020014240 | 36,0 | Black | M40 x 1,5 | 27,0 | 50,0 | 12,0 | 59,0 | 45 | 2,560 | 25 |
| 15020014250 | 45,0 | Black | M50 x 1,5 | 35,5 | 59,5 | 12,0 | 62,5 | 54 | 3,520 | 25 |
| 15020014263 | 56,0 | Black | M63 x 1,5 | 46,0 | 71,5 | 15,0 | 68,0 | 65 | 5,900 | 10 |
| 15020014012 | 10,0 | Grey | M12 x 1,5 | 5,5 | 17,5 | 10,0 | 38,0 | 16 | 0,260 | 50 |
| 15020014016 | 14,0 | Grey | M16 x 1,5 | 9,5 | 21,0 | 10,0 | 39,5 | 19 | 0,380 | 50 |
| 15020014020 | 17,0 | Grey | M20 x 1,5 | 11,5 | 24,5 | 10,0 | 42,0 | 22 | 0,640 | 50 |
| 15020014025 | 21,0 | Grey | M25 x 1,5 | 14,5 | 30,0 | 11,0 | 48,0 | 27 | 0,980 | 50 |
| 15020014032 | 27,0 | Grey | M32 x 1,5 | 19,5 | 39,0 | 12,0 | 58,0 | 35 | 1,680 | 25 |
| 15020014040 | 36,0 | Grey | M40 x 1,5 | 27,0 | 50,0 | 12,0 | 59,0 | 45 | 2,560 | 25 |
| 15020014050 | 45,0 | Grey | M50 x 1,5 | 35,5 | 59,5 | 12,0 | 62,5 | 54 | 3,520 | 25 |
| 15020014063 | 56,0 | Grey | M63 x 1,5 | 46,0 | 71,5 | 15,0 | 68,0 | 65 | 5,900 | 10 |
| 15020714012 | 10,0 | Grey | M12 x 1,5 | 5,5 | 17,5 | 10,0 | 38,0 | 16 | 0,260 | 10 |
| 15020714016 | 14,0 | Grey | M16 x 1,5 | 9,5 | 21,0 | 10,0 | 39,5 | 19 | 0,380 | 10 |
| 15020714020 | 17,0 | Grey | M20 x 1,5 | 11,5 | 24,5 | 10,0 | 42,0 | 22 | 0,640 | 10 |
| 15020714025 | 21,0 | Grey | M25 x 1,5 | 14,5 | 30,0 | 11,0 | 48,0 | 27 | 0,980 | 10 |
| 15020714032 | 27,0 | Grey | M32 x 1,5 | 19,5 | 39,0 | 12,0 | 58,0 | 35 | 1,680 | 10 |
| 15020714040 | 36,0 | Grey | M40 x 1,5 | 27,0 | 50,0 | 12,0 | 59,0 | 45 | 2,560 | 2 |
| 15020714050 | 45,0 | Grey | M50 x 1,5 | 35,5 | 59,5 | 12,0 | 62,5 | 54 | 3,520 | 2 |
| 15020714063 | 56,0 | Grey | M63 x 1,5 | 46,0 | 71,5 | 15,0 | 68,0 | 65 | 5,900 | 2 |
LKI-P - IP54, PG thread, designed for AIRflex conduits
| FLEXA No. | OD [mm] |
Colour | Thread type |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg|100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|
| 15020010007 | 10,0 | Grey | PG7 | 5,5 | 17,5 | 10,0 | 38,0 | 16 | 0,300 | 50 |
| 15020010009 | 14,0 | Grey | PG9 | 9,5 | 21,0 | 10,0 | 39,5 | 16 | 0,340 | 50 |
| 15020010011 | 17,0 | Grey | PG11 | 11,5 | 24,5 | 10,0 | 42,0 | 22 | 0,600 | 50 |
| 15020010013 | 19,0 | Grey | PG13,5 | 13,0 | 26,5 | 10,0 | 42,0 | 24 | 0,660 | 50 |
| 15020010016 | 21,0 | Grey | PG16 | 14,5 | 30,0 | 11,0 | 48,0 | 27 | 0,920 | 50 |
| 15020010021 | 27,0 | Grey | PG21 | 19,5 | 39,0 | 11,0 | 58,0 | 35 | 1,720 | 25 |
| 15020010029 | 36,0 | Grey | PG29 | 27,0 | 50,0 | 12,0 | 59,0 | 45 | 2,800 | 25 |
| 15020010036 | 45,0 | Grey | PG36 | 35,5 | 59,5 | 12,0 | 62,5 | 54 | 3,680 | 25 |
| 15020010048 | 56,0 | Grey | PG48 | 46,0 | 71,5 | 15,0 | 68,0 | 65 | 5,800 | 10 |
| 15020710007 | 10,0 | Grey | PG7 | 5,5 | 17,5 | 10,0 | 38,0 | 16 | 0,300 | 10 |
| 15020710009 | 14,0 | Grey | PG9 | 9,5 | 21,0 | 10,0 | 39,5 | 19 | 0,340 | 10 |
| 15020710011 | 17,0 | Grey | PG11 | 11,5 | 24,5 | 10,0 | 42,0 | 22 | 0,600 | 10 |
| 15020710013 | 19,0 | Grey | PG13,5 | 13,0 | 26,5 | 10,0 | 42,0 | 24 | 0,660 | 10 |
| 15020710016 | 21,0 | Grey | PG16 | 14,5 | 30,0 | 11,0 | 48,0 | 27 | 0,920 | 10 |
| 15020710021 | 27,0 | Grey | PG21 | 19,5 | 39,0 | 11,0 | 58,0 | 35 | 1,720 | 10 |
| 15020710029 | 36,0 | Grey | PG29 | 27,0 | 50,0 | 12,0 | 59,0 | 45 | 2,800 | 2 |
| 15020710036 | 45,0 | Grey | PG36 | 35,5 | 59,5 | 12,0 | 62,5 | 54 | 3,680 | 2 |
| 15020710048 | 56,0 | Grey | PG48 | 46,0 | 71,5 | 15,0 | 68,0 | 65 | 5,800 | 2 |
To download
Producer
Product code
LKI
Series
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
, PG 07
, PG 09
, PG 11
, PG 13.5
, PG 16
, PG 21
, PG 29
, PG 36
, PG 48
Material
Polyamide
Ingress Protection
IP54
Product width in millimeters
17.5
, 21
, 24.5
, 30
, 39
, 50
, 59,5
, 71,5
, 26.5
Tubing outer diameter (mm)
10
, 14
, 17
, 21
, 27
, 36
, 45
, 56
Product height in millimetres
38
, 39.5
, 42
, 48
, 58
, 59
, 62.5
, 68
Temperature range
-10...+110°C
Colour
Black
, Grey
