Flexa LIF-M - metal connector for corrugated tubings

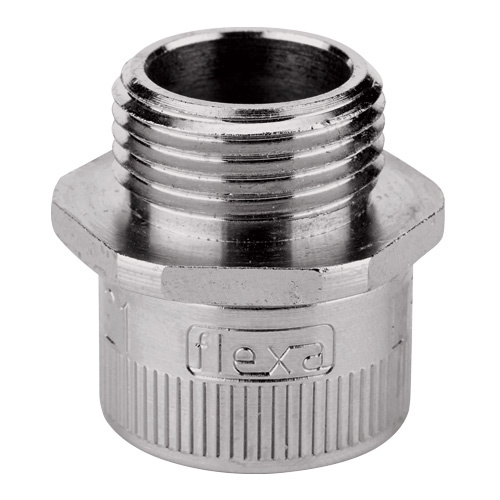

- Flexa LIF-M is a metal, straight connector with a fixed metric external thread, made of nickel-plated brass. It has an integrated connection for a conduit.
Flexa LIF-M
Flexa LIF-M is a simple, metal, fixed connector with an external metric thread, made of nickel-plated brass. It is designed for various protective pipes, such as SPR-AS, SPR-VA, SPR-PA, SPR-PU-F, SPR-PVC-AS, SPR-PU-AS, FLEXAgraff-PU-AS, FLEXAgraff-PU-F, FLEXAgraff-AS, FLEXAgraff-VA, FLEXAgraff-SI-ASF. It provides IP 40 protection (according to EN 60529). It has an integrated connection for a conduit. The operating temperature range of the connector is from -40°C to +250°C.
Connector features:
- integrated connection for a conduit
- conduit end covers
- resistance to vibration and stress
Applications:
- machine and equipment construction
- automotive industry
- shipbuilding industry
- automation / electrical installations
| FLEXA No. | OD [mm] |
Thread type |
Conduit ID |
Conduit OD |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg/100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15801310012 | 10.0 | M12 x 1.5 | 7.0 | 10.0 | 5.9 | 16.0 | 10.0 | 26.0 | 15 | 1.550 | 50 |
| 15801314016 | 14.0 | M16 x 1.5 | 10.0 | 14.0 | 8.9 | 21.0 | 10.0 | 27.0 | 19 | 2.400 | 50 |
| 15801317016 | 17.0 | M16 x 1.5 | 13.0 | 17.0 | 11.0 | 25.0 | 10.0 | 27.0 | 23 | 3.000 | 50 |
| 15801317020 | 17.0 | M20 x 1.5 | 13.0 | 17.0 | 12.0 | 25.0 | 10.0 | 27.0 | 23 | 2.900 | 50 |
| 15801321020 | 21.0 | M20 x 1.5 | 17.0 | 21.0 | 15.0 | 29.0 | 10.0 | 27.0 | 27 | 3.800 | 50 |
| 15801327025 | 27.0 | M25 x 1.5 | 22.0 | 27.0 | 20.0 | 37.0 | 11.0 | 30.5 | 34 | 6.300 | 25 |
| 15801336032 | 36.0 | M32 x 1.5 | 29.0 | 36.0 | 27.5 | 45.6 | 13.0 | 33.0 | 43 | 8.100 | 25 |
| 15801345040 | 45.0 | M40 x 1.5 | 38.0 | 45.0 | 35.0 | 59.0 | 13.0 | 33.0 | 54 | 13.300 | 25 |
| 15801356050 | 56.0 | M50 x 1.5 | 49.0 | 56.0 | 45.0 | 69.0 | 14.0 | 34.0 | 66 | 18.500 | 10 |
| 15801810012 | 10.0 | M12 x 1.5 | 7.0 | 10.0 | 5.9 | 16.0 | 10.0 | 26.0 | 15 | 1.550 | 10 |
| 15801814016 | 14.0 | M16 x 1.5 | 10.0 | 14.0 | 8.9 | 21.0 | 10.0 | 27.0 | 19 | 2.400 | 10 |
| 15801817016 | 17.0 | M16 x 1.5 | 13.0 | 17.0 | 11.0 | 25.0 | 10.0 | 27.0 | 23 | 3.000 | 10 |
| 15801817020 | 17.0 | M20 x 1.5 | 13.0 | 17.0 | 12.0 | 25.0 | 10.0 | 27.0 | 23 | 2.900 | 10 |
| 15801821020 | 21.0 | M20 x 1.5 | 17.0 | 21.0 | 15.0 | 29.0 | 10.0 | 27.0 | 27 | 3.800 | 10 |
| 15801827025 | 27.0 | M25 x 1.5 | 22.0 | 27.0 | 20.0 | 37.0 | 11.0 | 30.5 | 34 | 6.300 | 10 |
| 15801836032 | 36.0 | M32 x 1.5 | 29.0 | 36.0 | 27.5 | 45.6 | 13.0 | 33.0 | 43 | 8.100 | 2 |
| 15801845040 | 45.0 | M40 x 1.5 | 38.0 | 45.0 | 35.0 | 59.0 | 13.0 | 33.0 | 54 | 13.300 | 2 |
| 15801856050 | 56.0 | M50 x 1.5 | 49.0 | 56.0 | 45.0 | 69.0 | 14.0 | 34.0 | 66 | 18.500 | 2 |
To download
Producer
Product code
LIF-M
Series
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
Material
Nickel-plated Brass
Ingress Protection
IP40
Tubing outer diameter (mm)
10 mm
, 14 mm
, 17 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Product width in millimeters
16
, 21
, 25
, 29
, 45,6
, 59
, 69
, 37
Product height in millimetres
26
, 27
, 30.5
, 33
, 34
Temperature range
-40...+250°C
Colour
Unpainted
