Flexa LI-M - metal connector for corrugated tubings

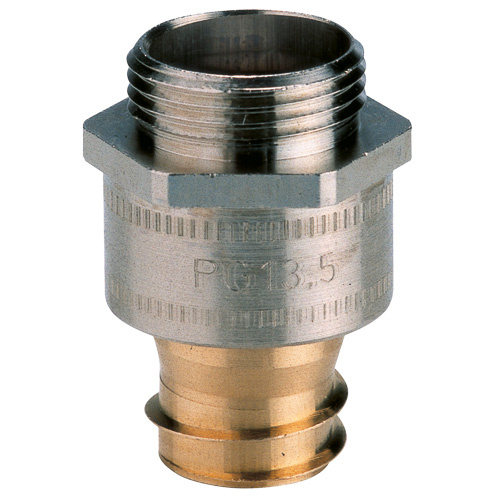

- Flexa LI-M is a metal, straight, turnable connector with external metric thread, made of nickel-plated brass, with an integrated clamping sleeve.
Flexa LI-M
Flexa LI-M is a simple, metal, swivel connector with an external metric thread, made of nickel-plated brass. It is designed for various protective pipes, such as SPR-AS, SPR-VA, SPR-PA, SPR-PU-F, SPR-PVC-AS, SPR-PU-AS, FLEXAgraff-PU-AS, FLEXAgraff-PU-F, FLEXAgraff-AS, FLEXAgraff-VA, FLEXAgraff-SI-ASF. It provides IP 40 protection (according to EN 60529). It has an integrated clamping sleeve. The operating temperature range of the connector is from -40°C to +250°C.
Connector features:
- integrated connection to the conduit
- conduit end covers
- resistance to vibration and stress
Applications:
- machine and equipment construction
- automotive industry
- shipbuilding industry
- automation / electrical installations
| FLEXA No. | OD [mm] |
Thread type |
Conduit ID |
Conduit OD |
Ø I [mm] |
Ø B [mm] |
C [mm] |
D [mm] |
WS [mm] |
Weight [kg/100] |
PU [pcs.] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15010012010 | 10,0 | M10 x 1,0 | 7,0 | 10,0 | 6,0 | 17,0 | 10,0 | 32,0 | 15 | 1,660 | 50 |
| 15010012012 | 14,0 | M12 x 1,5 | 10,0 | 14,0 | 9,0 | 21,0 | 10,0 | 33,0 | 19 | 2,240 | 50 |
| 15010012016 | 17,0 | M16 x 1,5 | 13,0 | 17,0 | 12,0 | 25,0 | 10,0 | 33,0 | 23 | 3,200 | 50 |
| 15010012020 | 21,0 | M20 x 1,5 | 17,0 | 21,0 | 15,5 | 29,0 | 10,0 | 35,0 | 27 | 4,260 | 50 |
| 15010012025 | 27,0 | M25 x 1,5 | 22,0 | 27,0 | 20,5 | 37,0 | 11,0 | 36,0 | 34 | 7,000 | 25 |
| 15010012032 | 36,0 | M32 x 1,5 | 29,0 | 36,0 | 27,5 | 46,0 | 13,0 | 43,0 | 43 | 12,080 | 25 |
| 15010012040 | 45,0 | M40 x 1,5 | 38,0 | 45,0 | 35,0 | 62,0 | 13,0 | 43,0 | 54 | 13,500 | 25 |
| 15010012050 | 56,0 | M50 x 1,5 | 49,0 | 56,0 | 45,0 | 76,0 | 14,0 | 44,0 | 66 | 25,600 | 10 |
| 15010712010 | 10,0 | M10 x 1,0 | 7,0 | 10,0 | 6,0 | 16,0 | 10,0 | 32,0 | 15 | 1,660 | 10 |
| 15010712012 | 14,0 | M12 x 1,5 | 10,0 | 14,0 | 9,0 | 21,0 | 10,0 | 33,0 | 19 | 2,240 | 10 |
| 15010712016 | 17,0 | M16 x 1,5 | 13,0 | 17,0 | 12,0 | 25,0 | 10,0 | 33,0 | 23 | 3,200 | 10 |
| 15010712020 | 21,0 | M20 x 1,5 | 17,0 | 21,0 | 15,5 | 29,0 | 10,0 | 35,0 | 27 | 4,260 | 10 |
| 15010712025 | 27,0 | M25 x 1,5 | 22,0 | 27,0 | 20,5 | 37,0 | 11,0 | 36,0 | 34 | 7,000 | 10 |
| 15010712032 | 36,0 | M32 x 1,5 | 29,0 | 36,0 | 27,5 | 46,0 | 13,0 | 43,0 | 43 | 12,080 | 2 |
| 15010712040 | 45,0 | M40 x 1,5 | 38,0 | 45,0 | 35,0 | 62,0 | 13,0 | 43,0 | 54 | 13,500 | 2 |
| 15010712050 | 56,0 | M50 x 1,5 | 49,0 | 56,0 | 45,0 | 76,0 | 14,0 | 44,0 | 66 | 25,600 | 2 |
To download
Producer
Product code
LI-M
Series
Thread
M10
, M12
, M16
, M20
, M25
, M32
, M40
, M50
Material
Nickel-plated Brass
Ingress Protection
IP40
Tubing outer diameter (mm)
10 mm
, 14 mm
, 17 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Product width in millimeters
16
, 17
, 21
, 25
, 29
, 37
, 46
, 62
, 76
Product height in millimetres
32
, 33
, 35
, 36
, 43
, 44
Temperature range
-40...+250°C
Colour
Unpainted
