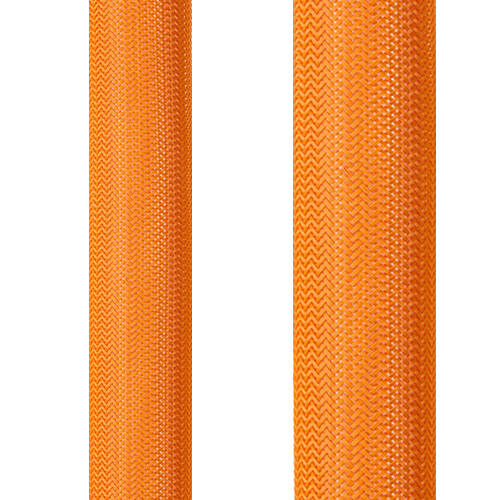

Flexa HG-PET025 - protective conduit
- HG-PET025 is a special protective conduit made of braided PET monofilament with a diameter of 0.25 mm and a surface coverage of more than 85%. It is characterized by low weight, high flexibility and very good media resistance.
Flexa HG-PET025
Flexa HG-PET025 is made of braided round monofilament PET with a diameter of 0.25 mm. It uses double cross interlacing at different angles. This product has a surface coverage of more than 85% and is designed for use in vehicle construction, engine compartment, vehicle interior, chassis and body, as well as rail vehicles and e-bus.
Product features:
- excellent mechanical protection
- low weight, low volume, high flexibility
- density construction, high surface cover
- very good media resistancev
- self-extinguishing (DIN 75200, FMVSS 302)
- fire class (DIN 5510 Part 1 + 2)
- 100 % recyclable
Application
- Cable Ties
- Machinery and equipment
- Automotive
- Railway
- Shipbuilding
- Automation
- Electrical installations
- eMobility
| FLEXA No. | Colour | NW [mm] |
Operative range [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|
| 10239609010 | Other | 5,0 | 4,0-10,0 | 0,005 | 200 |
| 10239609011 | Other | 8,0 | 6,0-11,0 | 0,006 | 150 |
| 10239609014 | Other | 10,0 | 8,0-14,0 | 0,009 | 150 |
| 10239609022 | Other | 14,0 | 10,0-22,0 | 0,011 | 100 |
| 10239609025 | Other | 20,0 | 18,0-25,0 | 0,020 | 100 |
| 10239609033 | Other | 25,0 | 18,0-33,0 | 0,030 | 100 |
| 10239609045 | Other | 32,0 | 28,0-45,0 | 0,040 | 100 |
| 10239609060 | Other | 45,0 | 38,0-60,0 | 0,050 | 100 |
| 10239609080 | Other | 50,0 | 35,0-80,0 | 0,060 | 50 |
To download
Producer
Product code
HG-PET025
Series
Material
Politereftalan etylenu
Temperature range
-55...+150°C
Product diameter in millimetres
5
, 8
, 10
, 14
, 20
, 25
, 32
, 45
, 50
Colour
Orange
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Certificate
DIN 5510 Part 1 + 2
, DIN 75200
, FMVSS 302
