Flexa HG-PA - protective conduit

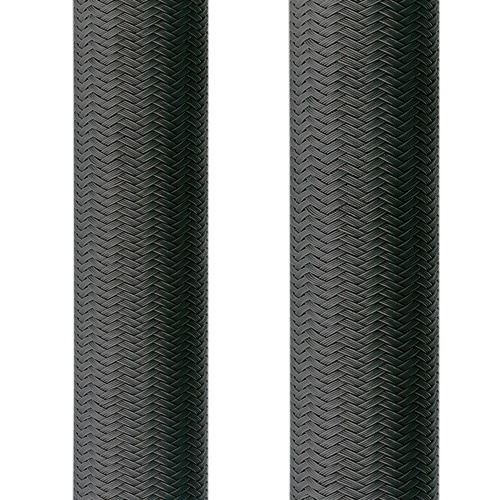

- Flexa HG-PA is a protective conduit made of wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles. Available in black.
Flexa HG-PA
Flexa HG-PA is a protective conduit made of wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles. Available in black.
Product features:
- V2 according to UL 94
- axially pushed together, in a certain proportion, depending the construction of the braiding
- easy pulling in of cables
- the braiding becomes tight by stretching
- oil- and benzine-resistant
- widely resistent to solvents and acids
- free of halogen
- self-extinguishing and flame-resistant
Application
- Automation
- Electrical installations
- Automotive
- Cable Ties
- Machinery and equipment
- Railway
- Shipbuilding
| FLEXA No. | Colour | NW [mm] |
Operative range [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|
| 10239202010 | Black | 5,0 | 4–10,0 | 0,008 | 100 |
| 10239202014 | Black | 10,0 | 7–14,0 | 0,014 | 100 |
| 10239202022 | Black | 14,0 | 10–22,0 | 0,014 | 100 |
| 10239202027 | Black | 20,0 | 18–27,0 | 0,017 | 100 |
| 10239202034 | Black | 25,0 | 18–34,0 | 0,026 | 100 |
| 10239202042 | Black | 30,0 | 28–42,0 | 0,038 | 50 |
| 10239202080 | Black | 50,0 | 35–80,0 | 0,057 | 50 |
To download
Producer
Product code
HG-PA
Series
Material
Polyamide - PA 6.6
Temperature range
-50...+150°C
Product diameter in millimetres
5
, 10
, 14
, 20
, 25
, 30
, 50
Colour
Black
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Certificate
EN 45545-2 [HL 3]
