Flexa FLEXAgraff-AS - protective conduit

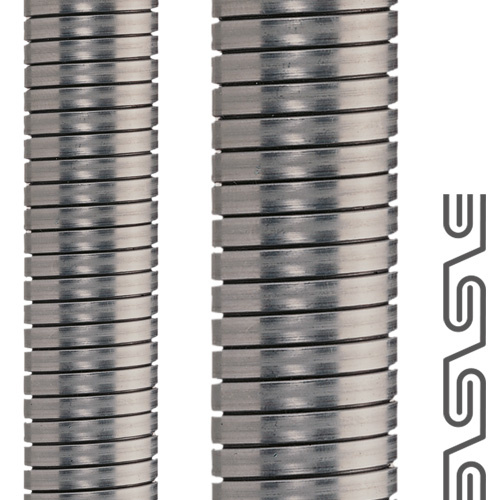

- Flexa FLEXAgraff-AS position is a metal protective conduit, strip-wounded, with an double-overlapped profile (Agraff), unpainted.
Flexa FLEXAgraff-AS
Flexa FLEXAgraff-AS position is a metal protective conduit, strip-wounded, with an double-overlapped profile (Agraff), unpainted.
Tubing features:
- high tensile and twisting strength
- no untwisting of the conduit
- very flexible
- high shielding factor
Applications:
- Shipbuilding
- Automation
- Electrical installations
- Hazardous areas to EN 60079-14 and EN 61241-14
- Machinery and equipment
- Automotive
- Railway
| FLEXA No. | Colour | OD [mm] |
ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 11080101008 | Zinc | 10,0 | 8,0 | 10,0 | 40 | 100 | 0,090 | 50 |
| 11080101012 | Zinc | 14,0 | 12,0 | 14,0 | 50 | 125 | 0,155 | 50 |
| 11080101014 | Zinc | 17,0 | 14,0 | 17,0 | 60 | 150 | 0,240 | 50 |
| 11080101016 | Zinc | 19,0 | 16,0 | 19,0 | 67 | 170 | 0,290 | 50 |
| 11080101018 | Zinc | 21,0 | 18,0 | 21,0 | 70 | 175 | 0,290 | 50 |
| 11080101024 | Zinc | 27,0 | 24,0 | 27,0 | 90 | 225 | 0,330 | 50 |
| 11080101031 | Zinc | 36,0 | 31,0 | 36,0 | 130 | 325 | 0,640 | 25 |
| 11080101040 | Zinc | 45,0 | 40,0 | 45,0 | 150 | 375 | 0,840 | 25 |
| 11080101051 | Zinc | 56,0 | 51,0 | 56,0 | 210 | 525 | 1,100 | 25 |
To download
Producer
Product code
FLEXAgraff-AS
Series
Material
Galvanized steel
Temperature range
-50...+250°C
Tubing inner diameter (mm)
8,0 x 10,0 mm
, 12,0 x 14,0 mm
, 14,0 x 17,0 mm
, 16,0 x 19,0 mm
, 18,0 x 21,0 mm
, 24,0 x 27,0 mm
, 31,0 x 36,0 mm
, 40,0 x 45,0 mm
, 51,0 x 56,0 mm
Tubing outer diameter (mm)
10 mm
, 14 mm
, 17 mm
, 19 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Unpainted
Certificate
DIN EN IEC 61386-23
, EN 60079-14
, EN 61241-14
