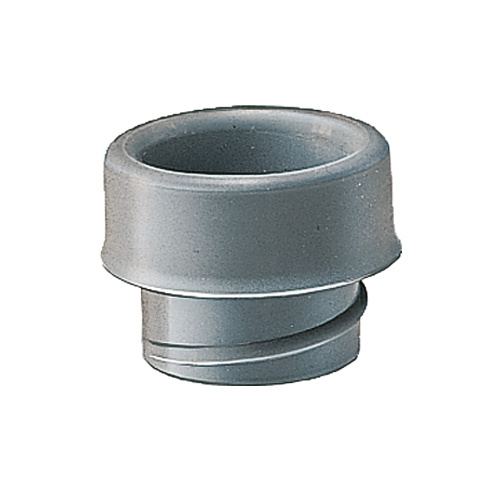

Flexa EEK - Connector for protective conductors
- The Flexa EEK connector has various outer diameters (OD) and is precisely matched to the dimensions of protective conduits with a specific inner diameter (Ø I). It is available in a wide range of sizes, from 10.0 mm to 56.0 mm OD.
Flexa EEK
The Flexa EEK connector is a universal component designed for effective connection or termination of protective conduits. It is available in various outer diameters (OD) and with a precise range of adjustment to the dimensions of protective conduits (Conduitmaß), ensuring a stable and secure connection. Each connector also has a specific internal diameter (Ø I), which is crucial for compatibility with the internal cross-section of the cable. The product is available in many sizes to meet a wide range of installation needs. (Please note that based on the screen provided, there is no information about the material, temperature range, and compliance with CE, RoHS, and REACH standards).
Connector features:
- Available in various outer diameters (OD from 10.0 mm to 56.0 mm)
- Precisely matched to the dimensions of protective conduits (Conduitmaß, e.g., from 7.0-10.0 mm to 48.0-56.0 mm)
- Has a specific inner diameter (Ø I from 6.0 mm to 45.5 mm)
- Various unit weights (Weight [kg/100])
- Available in various unit packaging (PU [pcs.])
Applications:
- Electrical and telecommunications installations requiring the connection or termination of protective conduits
- Cable protection systems in various industries and construction
- Applications where a precise fit of the connector to specific protective conduit sizes is required
| FLEXA No. | OD [mm] |
Conduitmaß [mm] |
Ø I [mm] |
Weight [kg/100] |
PU [pcs.] |
|---|---|---|---|---|---|
| 15020030007 | 10,0 | 7,0-10,0 | 6,0 | 0,040 | 50 |
| 15020030009 | 14,0 | 10,0-14,0 | 9,0 | 0,060 | 50 |
| 15020030011 | 17,0 | 13,0-17,0 | 11,5 | 0,100 | 50 |
| 15020030013 | 19,0 | 15,0-19,0 | 13,0 | 0,120 | 50 |
| 15020030016 | 21,0 | 16,0-21,0 | 14,5 | 0,140 | 50 |
| 15020030021 | 27,0 | 21,0-27,0 | 19,5 | 0,200 | 25 |
| 15020030029 | 36,0 | 29,0-36,0 | 26,5 | 0,400 | 25 |
| 15020030036 | 45,0 | 38,0-45,0 | 36,0 | 0,600 | 20 |
| 15020030048 | 56,0 | 48,0-56,0 | 45,5 | 0,770 | 10 |
