Flexa AIRflex KUW-PU-AS - protective conduit

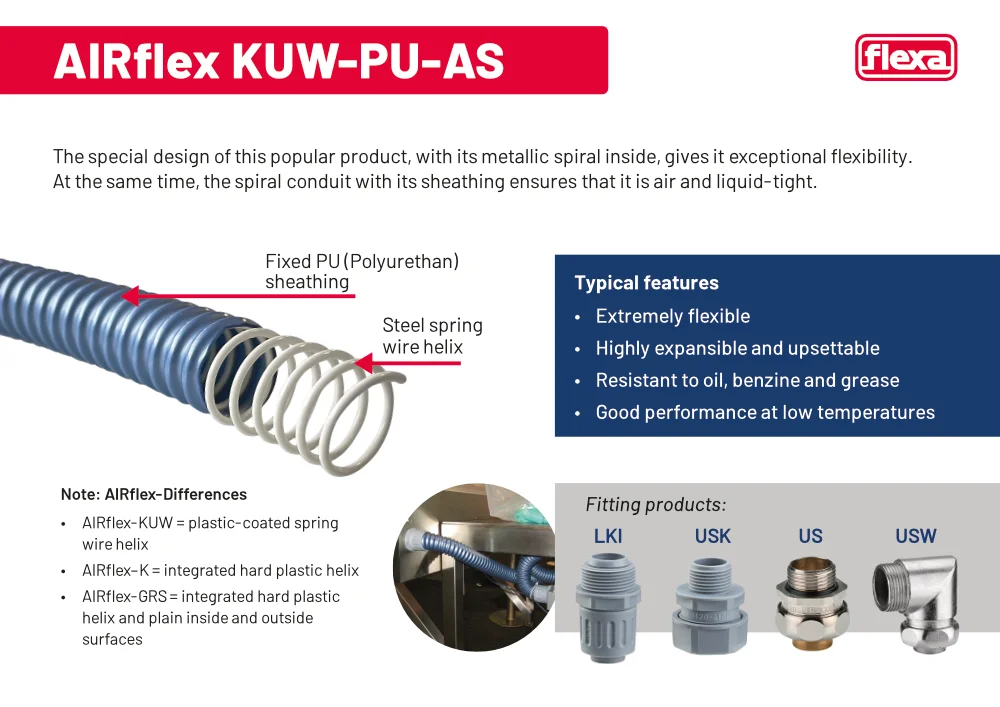

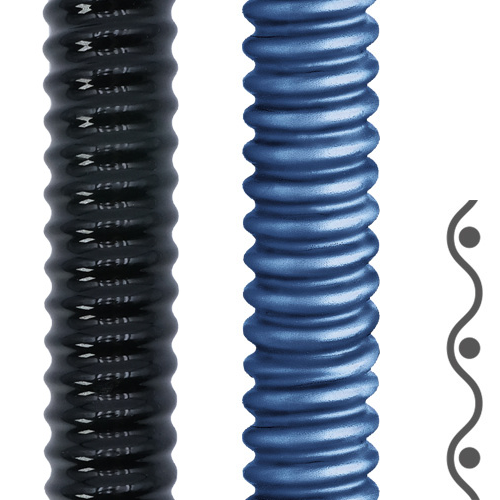

- Flexa AIRflex-AIRflex KUW-PU-AS is a Protective plastic conduit, helical coiled corrugated, inside spiral of plastic-sheathed spring steel wire, fixed PU sheathing. Available in black or blue.
Flexa AIRflex KUW-PU-AS
Flexa AIRflex-AIRflex KUW-PU-AS is a protective plastic conduit, helical coiled corrugated, inside spiral of plastic-sheathed spring steel wire, fixed PU sheathing. Available in black or blue.
Tubing features:
- extremely flexible
- highly expansible and upsettable
- airtight and liquid tight
- high tenacity | abrasion resistance
- resistant to oil, benzine and grease
- widely resistant to solvents and acids
- free of halogen, silicone, cadmium
- microbe resistant
- good performance at low temperatures
- flame-resistant
- approved acc. to DIN EN ICE 61386-23
Applications:
- Machinery and equipment
- Automotive
- Shipbuilding
- Automation
- Medical Technology
- Electrical installations
- Use in energy chains
- Suitable suction hose
| FLEXA No. | Colour | OD [mm] |
ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 12040702007 | Black | 10,0 | 7,0 | 10,0 | 8 | 20 | 0,050 | 50 |
| 12040702010 | Black | 14,0 | 10,0 | 14,0 | 10 | 25 | 0,085 | 50 |
| 12040702013 | Black | 17,0 | 13,0 | 17,0 | 13 | 35 | 0,116 | 50 |
| 12040702015 | Black | 19,0 | 15,0 | 19,0 | 15 | 40 | 0,119 | 50 |
| 12040702016 | Black | 21,0 | 16,0 | 21,0 | 17 | 45 | 0,160 | 50 |
| 12040702021 | Black | 27,0 | 22,0 | 27,0 | 20 | 55 | 0,260 | 50 |
| 12040702029 | Black | 36,0 | 29,0 | 36,0 | 25 | 65 | 0,420 | 25 |
| 12040702038 | Black | 45,0 | 38,0 | 45,0 | 30 | 90 | 0,500 | 25 |
| 12040702048 | Black | 56,0 | 48,0 | 56,0 | 40 | 100 | 0,820 | 25 |
| 12040701007 | Blue | 10,0 | 7,0 | 10,0 | 8 | 20 | 0,038 | 50 |
| 12040701010 | Blue | 14,0 | 10,0 | 14,0 | 10 | 25 | 0,085 | 50 |
| 12040701013 | Blue | 17,0 | 13,0 | 17,0 | 13 | 35 | 0,116 | 50 |
| 12040701015 | Blue | 19,0 | 15,0 | 19,0 | 15 | 40 | 0,119 | 50 |
| 12040701016 | Blue | 21,0 | 16,0 | 21,0 | 17 | 45 | 0,160 | 50 |
| 12040701021 | Blue | 27,0 | 22,0 | 27,0 | 20 | 55 | 0,260 | 50 |
| 12040701029 | Blue | 36,0 | 29,0 | 36,0 | 25 | 65 | 0,420 | 25 |
| 12040701038 | Blue | 45,0 | 38,0 | 45,0 | 30 | 90 | 0,500 | 25 |
| 12040701048 | Blue | 56,0 | 48,0 | 56,0 | 40 | 100 | 0,820 | 25 |
To download
Producer
Product code
AIRflex KUW-PU-AS
Series
Material
Polyurethane - PU
Temperature range
-40...+100°C
Tubing inner diameter (mm)
7,0 x 10,0 mm
, 10.0 x 14.0 mm
, 13,0 x 17,0 mm
, 15,0 x 19,0 mm
, 16.0 x 21.0 mm
, 22,0 x 27,0 mm
, 29,0 x 36,0 mm
, 38,0 x 45,0 mm
, 48,0 x 56,0 mm
Tubing outer diameter (mm)
10 mm
, 14 mm
, 17 mm
, 19 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Resistance to compression
Regular
Flame resistance
Decreased
Insulating value
Regular
UV resistance
Decreased
Resistance to impact
Decreased
Operation in smoke
Increased
Pertol resistance
Regular
Oil resistance
Regular
Tensile strength
Regular
Flexibility
Regular
Profile
Helical coiled corrugated
Colour
Black
Compatible with
AIRflex KUW-PU-AS
Certificate
DIN EN 61386-23
