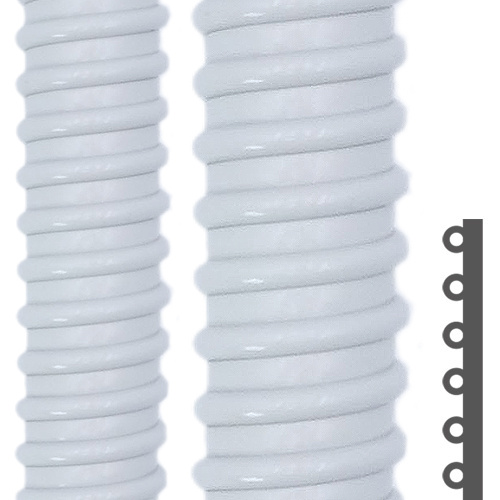

Flexa AIRflex-KS - plain tubing
- Flexa AIRflex-KS is a protective all-plastic tubing, strip-wound, plain inside surface, integrated helix of rigid plastic. Available in gray.
Flexa AIRflex-KS
Flexa AIRflex-KS is a protective all-plastic tubing, strip-wound, plain inside surface, integrated helix of rigid plastic. Available in gray.
Tubing features:
- extremely flexible
- air- and liquid proof
- widely resistant to oil and acids
- free of silicone and cadmium
- easy drawing-in of cables
Applications:
- Machinery and equipment
- Automotive
- Shipbuilding
- Automation
- Electrical installations
| FLEXA No. | Colour | OD [mm] |
ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 1020011102 | Grey | 17,0 | 12,0 | 16,4 | 17,5 | 45 | 0,090 | 30 |
| 1020011106 | Grey | 21,0 | 16,0 | 20,7 | 25,0 | 60 | 0,120 | 30 |
| 1020011120 | Grey | 25,0 | 20,0 | 24,7 | 30,0 | 75 | 0,160 | 30 |
| 1020011125 | Grey | 31,0 | 25,0 | 30,6 | 35,0 | 90 | 0,200 | 30 |
| 1020011132 | Grey | 38,0 | 32,0 | 38,0 | 45,0 | 120 | 0,300 | 30 |
| 1020011140 | Grey | 47,0 | 40,0 | 46,4 | 50,0 | 140 | 0,370 | 30 |
| 1020011150 | Grey | 57,0 | 50,0 | 57,0 | 60,0 | 150 | 0,470 | 30 |
To download
Producer
Product code
AIRflex-KS
Series
Material
PVC
Temperature range
-5...+60°C
Tubing inner diameter (mm)
12,0 x 16,4 mm
, 16,0 x 20,7 mm
, 20,0 x 24,7 mm
, 25,0 x 30,6 mm
, 32,0 x 38,0 mm
, 40,0 x 46,4 mm
, 50,0 x 57,0 mm
Tubing outer diameter (mm)
17 mm
, 21 mm
, 25 mm
, 31 mm
, 38 mm
, 47 mm
, 57 mm
Resistance to compression
Regular
Flame resistance
Decreased
Insulating value
Regular
UV resistance
Decreased
Resistance to impact
Decreased
Operation in smoke
Increased
Pertol resistance
Regular
Oil resistance
Regular
Tensile strength
Regular
Flexibility
Regular
Profile
Helical coiled corrugated
Colour
Grey
Compatible with
AIRflex-KS
Certificate
RoHS
, CE
