Flexa AIRflex-GRS-FOOD - protective conduit

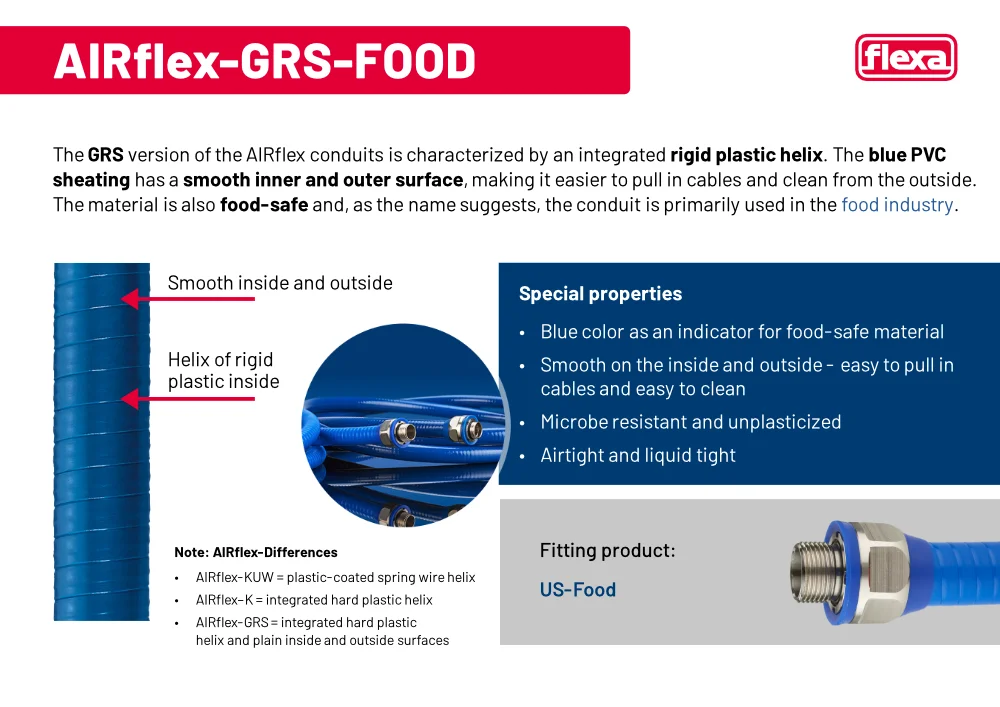

- AIRflex-GRS-FOOD is Flexa's all-plastic tubing with a plain profile and blue colour. Dedicated for use in the food production industry.
Flexa AIRflex-GRS-FOOD

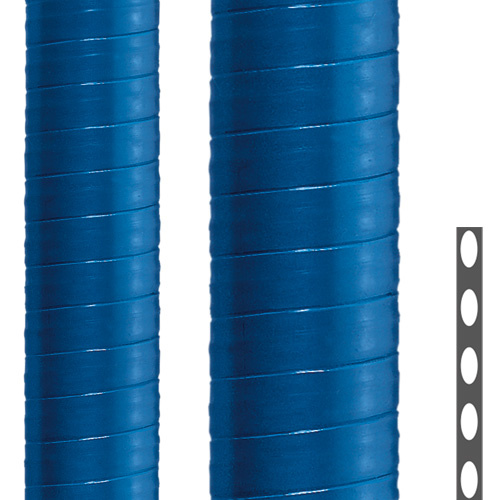

All-plastic tubing AIRflex-GRS-FOOD from FLEXA-FOOD series developed by Flexa, dedicated for use in, among others, the food production industry. Product has plain profile and blue colour. Operating temperature range -25°C... +50°C (+70°C short-term).
FLEXA US-Food-System
AIRflex-GRS-FOOD tubing features:
- food-safe
- microbe resistant
- flexible
- airtight and liquid tight - IP68
- widely resistant to oil and acids
- free of silicone and cadmium
- unplasticized
- plain inside and outside, easy drawing-in of cables and cleaning outside surface of conduits
Applications
- Automation
- Electrical installations
- Food and beverage industry
- Machinery and equipment
| FLEXA No. | Colour | OD [mm] |
Profile | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 10220904016 | Blue | 1/2 inch | - | 16,0 | 21,0 | 70 | 175 | 0,175 | 50 |
| 10220904021 | Blue | 3/4 inch | - | 21,0 | 27,0 | 85 | 210 | 0,240 | 50 |
| 10220904029 | Blue | 1 inch | - | 26,2 | 33,0 | 125 | 310 | 0,410 | 25 |
| 10220904038 | Blue | 1 1/4 inch | - | 35,0 | 42,0 | 160 | 400 | 0,530 | 25 |
To download
Producer
Product code
AIRflex-GRS-FOOD
Series
Material
PVC
Temperature range
-25...+50°C
Tubing inner diameter (mm)
16.0 x 21.0 mm
, 21.0 x 27.0 mm
, 26.2 x 33.0 mm
, 35.0 x 42.0 mm
Tubing outer diameter (mm)
21 mm
, 27 mm
, 33 mm
, 42 mm
Resistance to compression
Regular
Flame resistance
Decreased
Insulating value
Regular
UV resistance
Decreased
Resistance to impact
Decreased
Operation in smoke
Increased
Pertol resistance
Regular
Oil resistance
Regular
Tensile strength
Regular
Flexibility
Regular
Profile
Plain
Colour
Blue
Compatible with
US-FOOD-M
, AIRflex-GRS-FOOD
Certificate
CFR 21
, ECOLAB
, NSF / ANSI 51
, EN 60529
