Bopla Euromas Polyester P 316 / 02.08 16 06 universal 160x75x56.5 mm enclosure (04316000)
- The P 316 enclosure is made of polyester and has dimensions 160 x 75 x 56.5 mm. The product ingress protection rating is IP66.
Bopla P 316 (04316000)
A classic enclosure manufactured from high-quality fiberglass-reinforced polyester (UP-GF 25-30%) with a focus on the quality of gasket assembly, translating into compliance with rigorous standards for the protection of customers' end devices. The molded neoprene gasket ensures a high degree of protection, at least IP66 according to the DIN EN 60529 standard. Alternatively, higher temperature resistance can be achieved using a silicone gasket. Achieved an impact protection rating of IK07 according to the IEC 62262 standard. Certification is possible according to UL requirements. Matching mounting accessories such as hinges, mounting plates, and wall brackets, including those for masts.

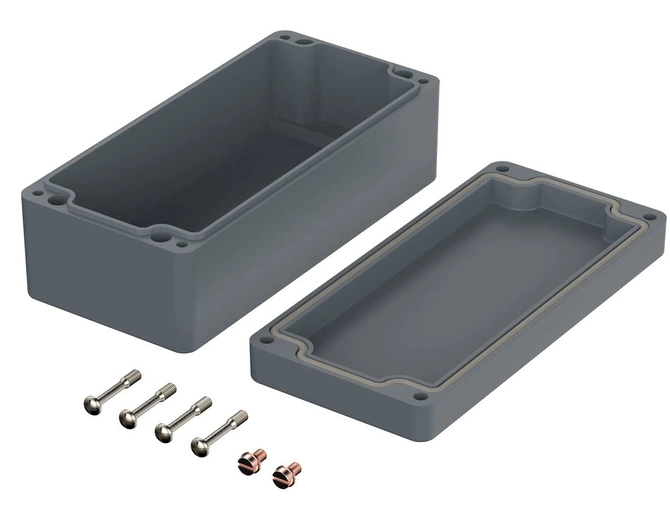

The package includes a base and a cover with mounting screws.
