Bopla Euromas PC M 237-V0 classic 200x120x90 mm enclosure (02237094)
- The M 237-V0 is a Bopla enclosure with dimensions of 200 x 120 x 90 mm. It is made of polycarbonate, has an ingress protection rating of IP66 and a V-0 flammability rating in accordance with UL 94 classification.
Easy return of products within 14 days from the date of purchase without giving reasons
Bopla M 237-V0 (02237094)
Classic industrial enclosure.The material PC UL 94 V0 complies with the requirements of R22 according to DIN EN 45545-2 at the HL3 hazard level (railway standard). Precisely mounted neoprene seal in the enclosure lid. Mounting pins for electronics in the base. Non-detachable screws from the lid mounted to high-quality sleeves in the enclosure base. Size-matched mounting plates, TS rails, hinges, brackets for mounting casings on masts. The high quality of the material used is greatly appreciated during casing milling.

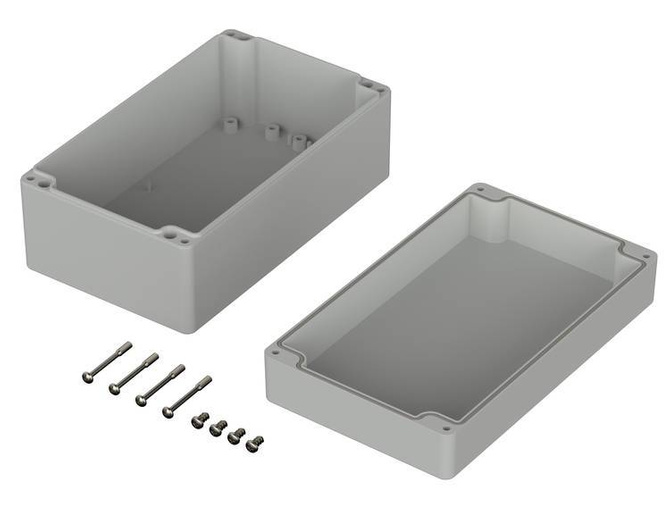

In the set, we provide a base and lid with mounting screws.
To download
Producer
Product code
02237094
Series
Product length in millimeters
200
Product height in millimetres
90
Product width in millimeters
120
Material
Polycarbonate - PC UL 94 V-0
Flammability - UL Standard
UL 94 V-0
Gasket material
Neoprene
Ingress Protection
IP66
Colour
RAL 7035 - Light grey
Certificate
EN 45545-2 [HL 3]
