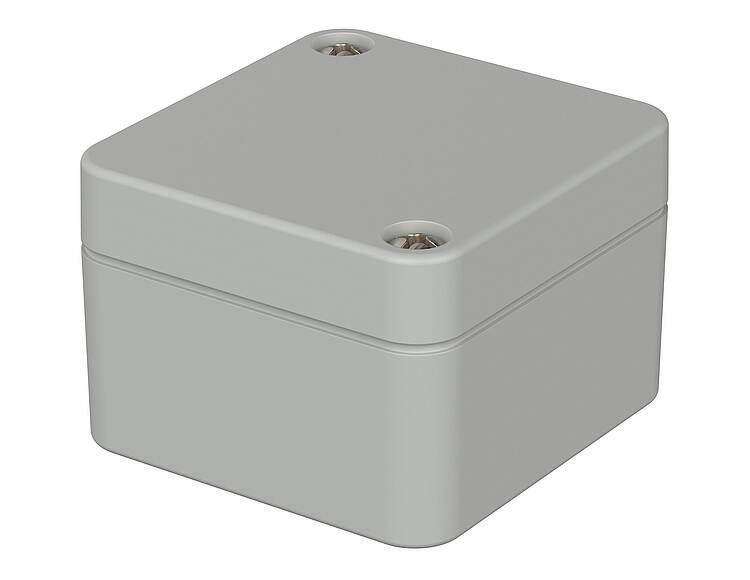

Bopla Euromas PC M 205 classic 52x50x35 mm enclosure (02205000)
- M 205 is a Bopla enclosure with dimensions of 52 x 50 x 35 mm. This product is made of polycarbonate and has an IP66 ingress protection rating.
Bopla M 205 (02205000)
Classic industrial enclosure. Precisely mounted neoprene seal in the enclosure lid. Mounting pins for electronics in the base. Non-detachable screws from the lid mounted to high-quality sleeves in the enclosure base. Size-matched mounting plates, TS rails, hinges, brackets for mounting casings on masts. The high quality of the material used is greatly appreciated during casing milling.

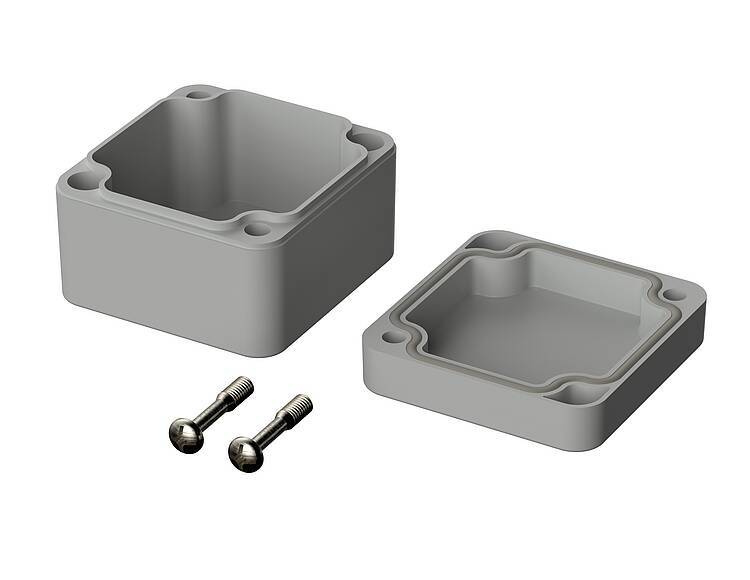

In the set, we provide a base and lid with mounting screws.
To download
Producer
Product code
02205000
Series
Product length in millimeters
52
Product width in millimeters
50
Product height in millimetres
35
Material
Polycarbonate - PC (UV stabilised)
Gasket material
Neoprene
Ingress Protection
IP66
Colour
RAL 7035 - Light grey
Certificate
EN 45545-2 [HL 3]
