Bopla A 160 / 01.23 33 11 aluminum 330x230x111 mm enclosure (01160000)

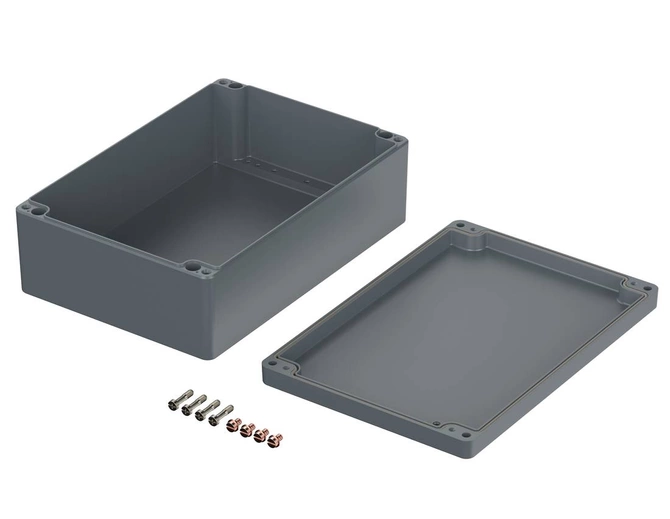

- Bopla A 160 is an aluminum can-type housing with dimensions of 330 x 230 x 111 mm and IP66 ingress protection rating.
Easy return of products within 14 days from the date of purchase without giving reasons
Bopla A 160 (01160000)
A classic enclosure manufactured from high-quality aluminum alloy G Al. Si 12, with careful attention to the quality of gasket installation, resulting in compliance with rigorous standards for the protection of customers' end devices. The molded neoprene gasket ensures a high degree of protection, at least IP66 according to DIN EN 60529 standards. Alternatively, higher temperature resistance can be achieved using a silicone gasket. Upon request, a special EMC gasket version is available to ensure a conductive connection between the cover and the base. The housing meets the requirements of R1 or R7 according to DIN EN 45545-2 standards for hazard level HL3 and UL. E 196 706, details in the material data sheets. Impact resistance level IK09 has been achieved according to IEC 62262 standards. Unpainted enclosures with a molded gasket in the lid and additional corrosion protection (surtec coating) are available on request. A waterproof version (SWB) is available upon special request, while the standard version already complies with railway requirements according to DIN EN 45545.Matching mounting accessories such as SCHD hinges, MA mounting plates, and WL wall brackets are included, including MH for masts.
The scope of delivery includes the base and lid with screws, as well as four earthing screws.
To download
Producer
Product code
01160000
Series
Product length in millimeters
330
Product height in millimetres
111
Product width in millimeters
230
Material
Aluminum
Ingress Protection
IP66
Gasket material
Neoprene
Colour
RAL 7001 - Silver grey
Certificate
EN 45545-2 [HL 3]
