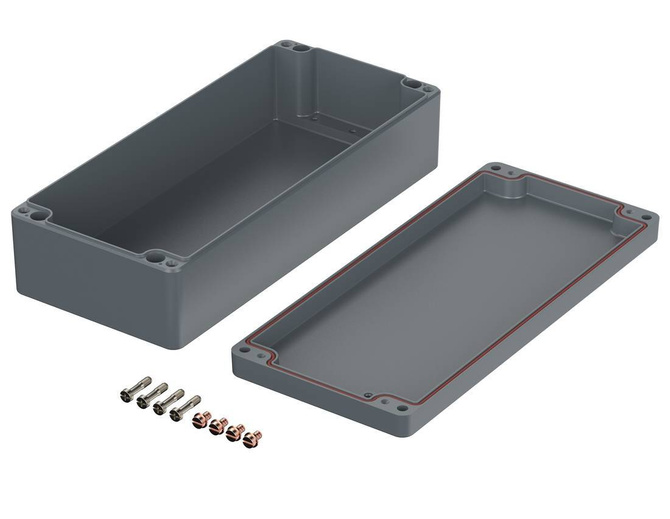

Bopla A 135 SIL (01135011) - aluminum enclosure with silicone seal (360 x 160 x 91 mm)
- A 135 SIL is an aluminum enclosure from Bopla with a silicone gasket. The product measures 360 x 160 x 91 mm. Ingress protection rating of IP66, RAL 7001 colour.
Easy return of products within 14 days from the date of purchase without giving reasons
Bopla A 135 SIL (01135011)
A classic enclosure manufactured from high-quality aluminum alloy G Al. Si 12, with careful attention to the quality of gasket installation, resulting in compliance with rigorous standards for the protection of customers' end devices. The molded silicone gasket ensures a high degree of protection, at least IP66 according to DIN EN 60529 standards. Upon request, a special EMC gasket version is available to ensure a conductive connection between the cover and the base. The housing meets the requirements of R1 or R7 according to DIN EN 45545-2 standards for hazard level HL3 and UL. E 196 706, details in the material data sheets. Impact resistance level IK09 has been achieved according to IEC 62262 standards. Unpainted enclosures with a molded gasket in the lid and additional corrosion protection (surtec coating) are available on request. A waterproof version (SWB) is available upon special request, while the standard version already complies with railway requirements according to DIN EN 45545.Matching mounting accessories such as SCHD hinges, MA mounting plates, and WL wall brackets are included, including MH for masts.
The scope of delivery includes the base and lid with screws, as well as earthing screws.
To download
Producer
Product code
01135011
Series
Product length in millimeters
360
Product height in millimetres
91
Product width in millimeters
160
Material
Aluminum
Ingress Protection
IP66
Gasket material
Silicone
Colour
RAL 7001 - Silver grey
Certificate
EN 45545-2 [HL 3]
