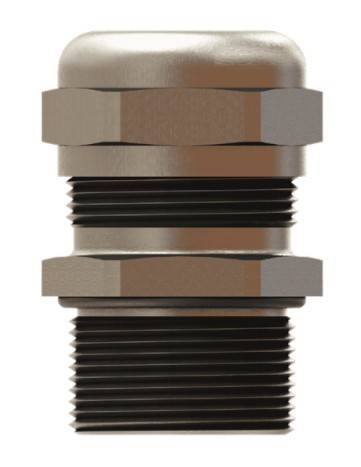

Bimed BSBC-03 - cable gland

  • BSBC-03 is a brass cable gland by Bimed. Protection degree: IP68. Clamping range: 5 - 10 mm, thread: PG11, 6 mm in length.
Bimed BSBC-03 - cable gland
Ingress Protection: IP66
Product body material: Brass
Thread: PG 11
Sealing range in millimeters: 5-10 mm
Ask about the product
Easy return of products within 14 days from the date of purchase without giving reasons

Bimed BSBC-03

BSBC-03 is a brass cable gland by Bimed. Protection degree: IP68. Clamping range: 5 - 10 mm, thread: PG11, 6 mm in length. Operating temperatures range from -20... +100 degrees Celsius.

To download
Producer
Product code
BSBC-03
Product length in millimeters
30
Colour
Unpainted
Straight / Angular
Straight
Ingress Protection
IP66
Temperature range
-20...+100°C
Product height in millimetres
20
Product width in millimeters
20
Product body material
Brass
Gasket material
Chloroprene - CR
Insert material
Polyamide - PA
Thread
PG 11
Thread length in millimeters
6
Sealing range in millimeters
5-10 mm
Flammability - UL Standard
UL 94 V-2
