Bimed BSBC-01 - brass cable gland
- BSBC-01 cable gland with PG 7 thread is made of nickel-plated brass. It has a clamping range of 13 - 18 mm and ensures IP66 ingress protection rating. Thread is 6 mm long.
Easy return of products within 14 days from the date of purchase without giving reasons
![Bimed BSBC-01 - brass cable gland](/eng_il_Bimed-BSBC-01-brass-cable-gland-9599.jpg)

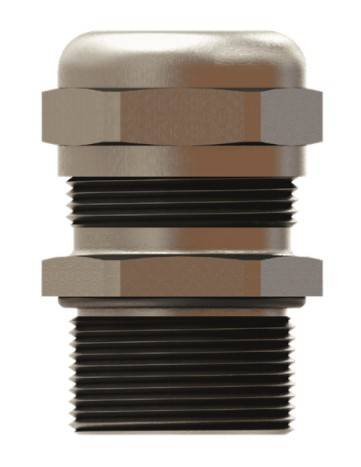

Bimed BSBC-01 - brass cable gland
Bimed BSBC-01
Cable gland made of nickel-plated brass with a PG 7 thread. The clamping range of the product is within 3 - 6 mm. Thread is 6 mm long. The cable gland also provides IP66 ingress protection rating. The cable gland can operate in the temperature range of -20...+100°C and has a V2 flammability rating according to UL94 standard.
To download
Producer
Product code
BSBC-01
Product length in millimeters
30
Colour
Unpainted
Straight / Angular
Straight
Ingress Protection
IP66
Temperature range
-20...+100°C
Product height in millimetres
15
Product width in millimeters
14
Gasket material
Chloroprene - CR
Product body material
Nickle-plated brass
Insert material
Poliamid - PA6
Thread
PG 7
Thread length in millimeters
6
Sealing range in millimeters
3-6 mm
Flammability - UL Standard
UL 94 V-2
