Ilme RKAX IAF20 - angled bulkhead mounted housing
- RKAX IAF20 is a 21.21 size angled bulkhead mounted housing made of die-cast zinc. It has a stainless steel lever, M20 threaded cable entry and locknut. Bulkhead hole closed. IP44 protection. Product with an increased number of mating cycles (5000).
Easy return of products within 14 days from the date of purchase without giving reasons
Ilme RKAX IAF20

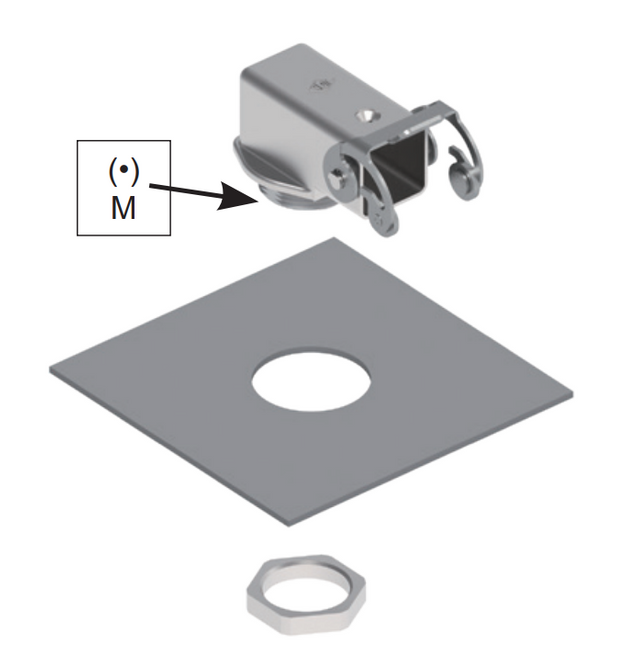

Angled bulkhead mounted housing size 21.21. It is made of zinc die-cast and equipped with a single lever made of stainless steel. It has a cable entry with M20 thread, an O-ring gasket and a closed bulkhead hole. The product is mounted with a locknut. The special lubrication of the lever rolls allowed to extend the product life to 5,000 mating cycles (HNM version). It can work in the temperature range of -40...+125°C. The degree of protection provided by the hood is IP44, but it can be extended to IP66 using CKR 65 sealing screws. The colour of the product is RAL 7040.
To download
Producer
Product code
RKAX IAF20
Series
Product length in millimeters
36
Locking lever
Stainless steel
Number of cycles
5000
Compatible with
3 A / 21.21
Product width in millimeters
55
Product height in millimetres
26.5
Ingress Protection
IP44
Material
Zinc
Number of cable glands
None
Thread
M20
Special features
No data
Temperature range
-40...+125°C
Certificate
No data
