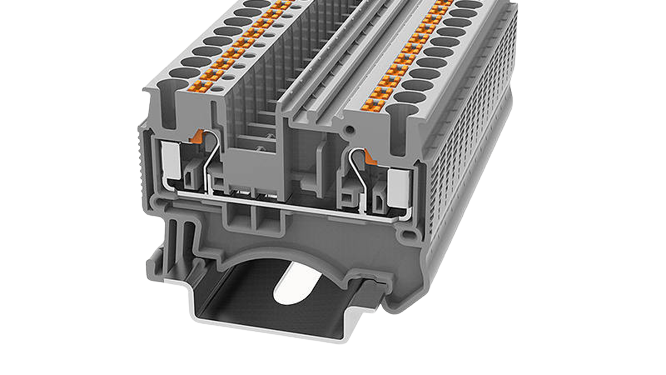

Degson DS2.5-01P-11-00A(H) DIN-rail connector
- Degson connector designed for use on a DIN rail. Made of polyamide. Enables the use with up to 2.5 mm² cross-section wire, AWG 26-12. Rated voltage 600V, rated current 24A and flammability class UL 94 V-0. Gray product colour.
Easy return of products within 14 days from the date of purchase without giving reasons
Degson DS2.5-01P-11-00A(H)
DS2.5-01P-11-00A(H) connector from Degson, intended for use on a DIN rail. Made of polyamide. It allows the use of a wire with a maximum cross-section of 2.5 mm², AWG 26-12. It is also characterized by a rated voltage of 600V, rated current of 24A and the flammability class UL 94 V-0. The product is available in a gray color variant.
To download
Producer
Product code
DIN Degson DS2.5-01P-11-00A(H)
Certificate
No data
, IEC60947-7-1/UL1059
Flammability - UL Standard
UL 94 V-0
Material
Polyamide - PA
Rated voltage
600V
Contact size / Cable diameter
26-12 AWG / 0.13 - 3.3 mm²
Rated current
24A
Connection type
Push-in connection
Number of levels
1
