Pflitsch UNI Ex Dicht Ex eb / Ex tb
ATEX cable gland, made of stainless steel AISI 303 with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M10 to M63, offers sealing up to IP66, IP68 (up to 10 bar), and includes a closed sealing insert made of TPE.
Features of UNI Ex Dicht Ex eb / Ex tb (with closed sealing inserts):
- Cable glands for hazardous areas: Ex eb / Ex tb
- Available in nickel-plated brass or stainless steel AISI 303
- Sealing insert made of white TPE
- Operating temperature: -20°C to +60°C
- Metric or Pg connection thread
- Protection rating: IP66 / IP68 (up to 10 bar)
- Version with closed sealing insert
- Stainless steel AISI 316Ti version available on request
- RoHS compliant
Applications
- Installations in hazardous areas
- Industrial automation systems
- Power and chemical industry
- Process engineering
- Marine and offshore industry
- Data and power transmission systems

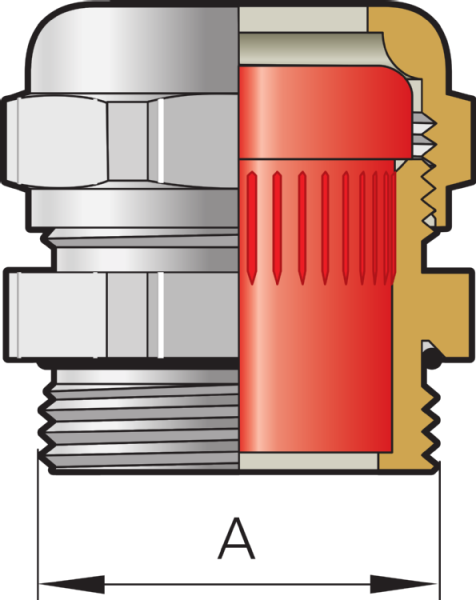

| Part No. | Thread A |
Thread length D [mm] | Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|
| 21049gex-12 | M10x1,0 | 5,0 | 20,0 | 14x15,5 | 50 |
| 21249gex-12 | M12x1,5 | 5,0 | 20,0 | 14x15,5 | 50 |
| 21650gex-12 | M16x1,5 | 6,0 | 20,0 | 18x20/17x18,9 | 50 |
| 22052gex-12 | M20x1,5 | 6,5 | 21,0 | 22x24,4 | 50 |
| 22553gex-12 | M25x1,5 | 7,5 | 21,0 | 28x31,2/24x26,7 | 50 |
| 23254gex-12 | M32x1,5 | 8,0 | 25,0 | 35x38,5/30x33,5 | 25 |
| 24055gex-12 | M40x1,5 | 8,0 | 27,0 | 43x47,3/40x43,5 | 10 |
| 25056gex-12 | M50x1,5 | 10,0 | 28,0 | 54x58/50x54 | 5 |
| 26358gex-12 | M63x1,5 | 10,0 | 30,0 | 68x74/64x69 | 5 |
To download
Producer
Product code
UNI Ex Dicht Ex eb / Ex tb
Series
Material
Nickel-plated Brass
, Stainless Steel AISI 303
Insert material
Thermoplastic elastomer - TPE
Thread
M10
, M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 10
Product height in millimetres
25
, 26
, 27.5
, 28.5
, 33
, 35
, 38
, 40
Product width in millimeters
15.5
, 18.9
, 24.4
, 26,7
, 33.5
, 43,5
, 54
, 69
Ingress Protection
IP66
, IP68
Application features
ATEX
Colour
Unpainted
Insert color
White
Temperature range
-20...+60°C
Certificate
EN 60529
, EN 60079-0:2012 + A11:2013
, EN 60079-7:2015
, EN 60079-31:2014
, IECEx – IECEx PTB 14.0021X
, EAC – RU C-DE.AЖ58.B.01336/21
, CCC – 2021312313000359
