Pflitsch UNI Dicht cable gland - stainless steel cable gland with TPE/TPE-V/silicone HT sealing
- UNI Dicht cable gland - stainless steel AISI 316Ti cable gland with TPE/TPE-V/silicone HT sealing insert by Pflitsch. thread: M12-M63, protection degree: IP68 (up to10 bar)

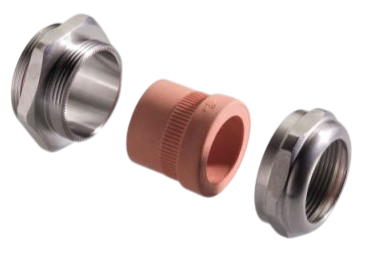

Pflitsch UNI Dicht cable gland
Cable gland made of AISI 316Ti stainless steel with an exceptionally wide clamping range. This product is available with threads from M12 to M63, offers sealing IP68 (up to 10 bar) and includes a sealing insert made of TPE/TPE-V/silicone HT.
Features of UNI Dicht cable glands:
- High chemical and mechanical resistance thanks to stainless steel AISI 316Ti
- Metric thread according to EN 60423
- Integrated silicone O-ring for effective sealing
- Protection rating IP68 (up to 10 bar) / Type 4X
- Temperature resistance from -40 °C to +130 °C (up to +200 °C depending on version)
- Strain relief up to class A according to EN 62444
- Various sealing insert options: TPE, TPE-V, silicone HT
Applications
- Industrial installations exposed to pressure and moisture
- Food and chemical processing industries
- Process automation and packaging machinery
- Marine and offshore technology
- Outdoor installations and corrosion-prone areas
- HVAC and refrigeration systems

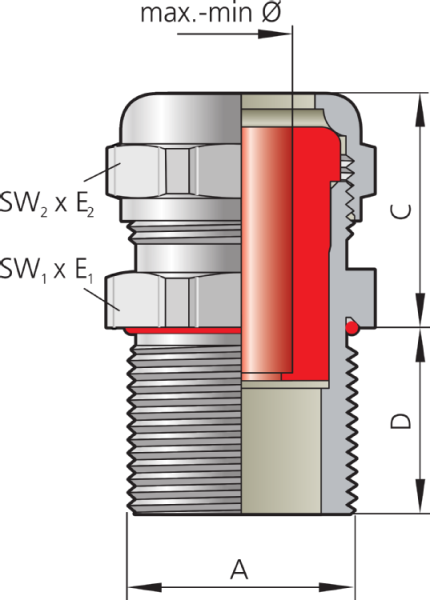

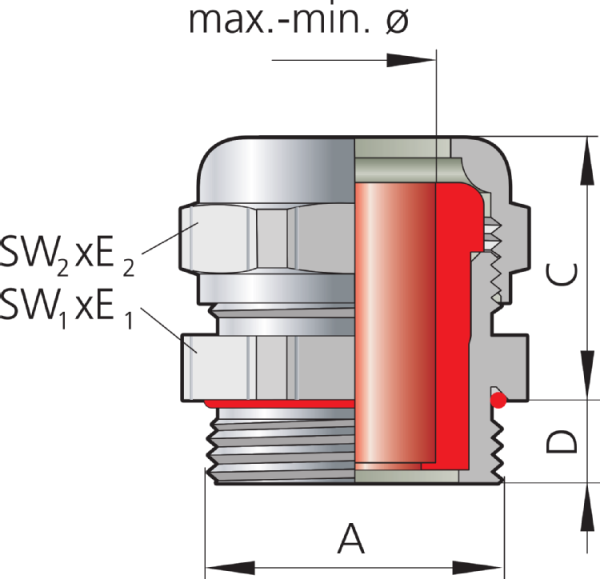

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø [mm] | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 21249st 7 V4A * | M12x1,5 | 5,0 | 6,5 – 4,0 | 19,0 | 14x15,5 | 50 |
| 21650st 7 V4A | M16x1,5 | 6,0 | 6,5 – 4,0 | 20,0 | 19x21/17x18,9 | 50 |
| 21650st 8 V4A | M16x1,5 | 6,0 | 8,0 – 5,0 | 20,0 | 19x21/17x18,9 | 50 |
| 21650st 9 V4A | M16x1,5 | 6,0 | 9,5 – 6,5 | 20,0 | 19x21/17x18,9 | 50 |
| 22051st 7 V4A | M20x1,5 | 6,5 | 6,5 – 4,0 | 20,0 | 22x24,4 | 50 |
| 22051st 8 V4A | M20x1,5 | 6,5 | 8,0 – 5,0 | 20,0 | 22x24,4 | 50 |
| 22051st 9 V4A | M20x1,5 | 6,5 | 9,5 – 6,5 | 20,0 | 22x24,4 | 50 |
| 22051st 11V4A | M20x1,5 | 6,5 | 10,5 – 7,0 | 20,0 | 22x24,4 | 50 |
| 22052st 7 V4A | M20x1,5 | 6,5 | 6,5 – 4,0 | 21,0 | 22x24,4 | 50 |
| 22052st 8 V4A | M20x1,5 | 6,5 | 8,0 – 5,0 | 21,0 | 22x24,4 | 50 |
| 22052st 9 V4A | M20x1,5 | 6,5 | 9,5 – 6,5 | 21,0 | 22x24,4 | 50 |
| 22052st 11V4A | M20x1,5 | 6,5 | 10,5 – 7,0 | 21,0 | 22x24,4 | 50 |
| 22052st 13V4A | M20x1,5 | 6,5 | 13,0 – 9,0 | 21,0 | 22x24,4 | 50 |
| 22553st 7 V4A | M25x1,5 | 7,5 | 6,5 – 4,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st 7 V4A | M25x1,5 | 7,5 | 6,5 – 4,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st 8 V4A | M25x1,5 | 7,5 | 8,0 – 5,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st 9 V4A | M25x1,5 | 7,5 | 9,5 – 6,5 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st 11V4A | M25x1,5 | 7,5 | 10,5 – 7,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st 13V4A | M25x1,5 | 7,5 | 13,0 – 9,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st 16V4A | M25x1,5 | 7,5 | 15,5 – 11,5 | 21,0 | 27x29,5/24x26,7 | 50 |
| 23254st 11V4A | M32x1,5 | 8,0 | 10,5 – 7,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st 13V4A | M32x1,5 | 8,0 | 13,0 – 9,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st 16V4A | M32x1,5 | 8,0 | 15,5 – 11,5 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st 18V4A | M32x1,5 | 8,0 | 18,0 – 14,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st 20V4A | M32x1,5 | 8,0 | 20,5 – 17,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 24055st 16V4A | M40x1,5 | 8,0 | 15,5 – 11,5 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st 18V4A | M40x1,5 | 8,0 | 18,0 – 14,0 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st 20V4A | M40x1,5 | 8,0 | 20,5 – 17,0 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st 25V4A | M40x1,5 | 8,0 | 25,0 – 20,0 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st 28V4A | M40x1,5 | 8,0 | 28,0 – 24,0 | 28,0 | 46x50/41x44,5 | 10 |
| 25056st 32V4A | M50x1,5 | 10,0 | 32,0 – 27,0 | 29,0 | 55x60,5/50x54 | 5 |
| 25056st 34V4A | M50x1,5 | 10,0 | 34,0 – 29,0 | 29,0 | 55x60,5/50x54 | 5 |
| 25056st 36V4A | M50x1,5 | 10,0 | 36,0 – 32,0 | 29,0 | 55x60,5/50x54 | 5 |
| 25057st 40V4A * ** | M50x1,5 | 10,0 | 40,0 – 36,0 | 32,0 | 60x65 | 5 |
| 26358st 44V4A ** | M63x1,5 | 10,0 | 44,0 – 39,0 | 30,0 | 68x74/65x70 | 5 |
