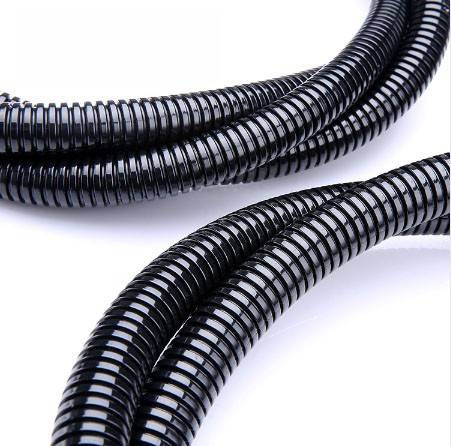

Flexa PA6 10233202012 corrugated tubing

  • 10233202012 is Flexa's all-plastic tubing in black colour. Outer diameter: 15.8 mm, internal dimensions: 12.0 x 15.8 mm.
Flexa PA6 10233202012 corrugated tubing
Material: Polyamide - PA6
Temperature range: -40...+120°C
Ingress Protection: IP68
Tubing outer diameter: 15.8 mm
Compatible with: PA6
9,00 zł
/ m net
50 m
Easy return of products within 14 days from the date of purchase without giving reasons
This product is not available in a stationary store

Flexa PA6 10233202010

All-plastic tubing 10233202010 from PA6 series developed by Flexa. Outer tubing diameter is 15.8 mm, internal dimensions are 12.0 x 15.8 mm. Product has fine profile.

Tubing features:

  • air- and liquid-tight
  • flame resistant
  • oil resistant up to +80 degrees Celsius
  • benzine resistant
  • UV-resistant
  • Tubing can be used in industry, railway and electrical applications
To download
Producer
Product code
10233202012
Series
Resistance to compression
Regular
Flame resistance
Increased
Insulating value
Increased
Material
Polyamide - PA6
Temperature range
-40...+120°C
Ingress Protection
IP68
UV resistance
Increased
Resistance to impact
Regular
Work in smoke
Impermissible
Pertol resistance
Increased
Oil resistance
Increased
Tensile strength
Regular
Tubing inner diameter
12.0 x 15.8 mm
Tubing outer diameter
15.8 mm
Flexibility
Increased
Certificate
EN / IEC 61386-23
,
UL 1696 UR file E86359
,
CSA 22.2 File No. 227.3-05
,
BS 6853
,
DIN 5510 Teil 2 | part 2 [S4 / SR2 / ST2] [eng] (62)
,
ASTM E 162 / E 662
,
UNI CEI 11170
,
NFF 16-101 / 102 [I2 / F2] [eng] (2)
,
EN 45545-2 [HL 3]
Colour
Black
Profile
Fine
Compatible with
PA6
