Flexa AIRflex-GRS - plain tubing
- AIRflex-GRS is Flexa's all-plastic tubing with a plain profile and gray colour.
Flexa AIRflex-GRS

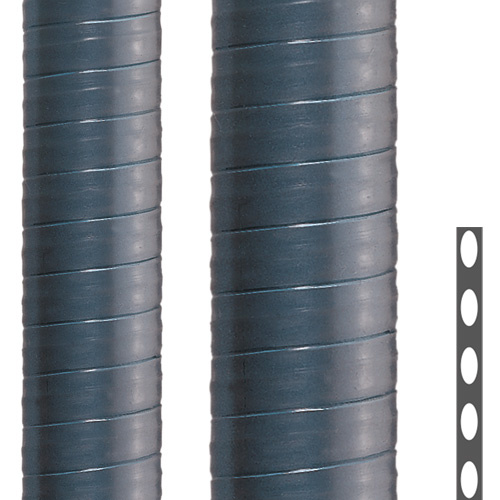

All-plastic tubing AIRflex-GRS, plain inside and outside surfaces, helix of rigid plastic. Available in gray with a plain profile.
Tubing features:
- V2 according to UL 94
- flexible
- airtight and liquid tight
- widely resistant to oil and acids
- free of silicone and cadmium
- plain inside and outside, easy drawing-in of cables and cleaning outside surface of conduits
Applications
- Machinery and equipment
- Automotive
- Shipbuilding
- Automation
- Medical Technology
- Electrical installations
| FLEXA No. | Colour | OD [mm] |
ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 10220101010 | Grey | 14,0 | 10,0 | 14,0 | 50 | 125 | 0,085 | 50 |
| 10220101013 | Grey | 17,0 | 13,0 | 17,0 | 65 | 165 | 0,120 | 50 |
| 10220101016 | Grey | 21,0 | 16,0 | 21,0 | 75 | 190 | 0,160 | 50 |
| 10220101021 | Grey | 27,0 | 21,0 | 27,0 | 90 | 225 | 0,240 | 50 |
| 10220101029 | Grey | 36,0 | 29,0 | 36,0 | 130 | 325 | 0,400 | 25 |
| 10220101038 | Grey | 45,0 | 38,0 | 45,0 | 190 | 475 | 0,580 | 25 |
| 10220101048 | Grey | 56,0 | 48,0 | 56,0 | 250 | 625 | 0,740 | 25 |
To download
Producer
Product code
AIRflex-GRS
Series
Material
PVC
Temperature range
-25...+90°C
Tubing inner diameter (mm)
10.0 x 14.0 mm
, 13,0 x 17,0 mm
, 16.0 x 21.0 mm
, 21.0 x 27.0 mm
, 29,0 x 36,0 mm
, 38,0 x 45,0 mm
, 48,0 x 56,0 mm
Tubing outer diameter (mm)
14 mm
, 17 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Resistance to compression
Regular
Flame resistance
Decreased
Insulating value
Regular
UV resistance
Decreased
Resistance to impact
Decreased
Operation in smoke
Increased
Pertol resistance
Regular
Oil resistance
Regular
Tensile strength
Regular
Flexibility
Regular
Profile
Plain
Colour
Grey
Compatible with
AIRflex-GRS
Certificate
UL 1696 UR file E86359
, CE
, RoHS
